Same model may have multiple batches, images only for reference.

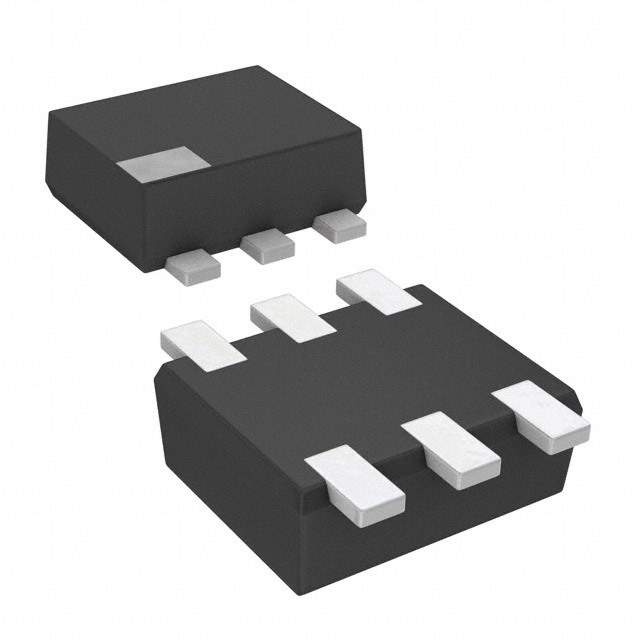

NP043A200A Real Image
Same model may have multiple batches, images only for reference.

NP043A200A

Part No NP043A200A
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS NPN/PNP SSSMINI6
Datasheet
NP043A200A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity 1 NPN, 1 PNP - Pre-Biased (Dual)
Maximum Current Collector 80mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 22k
Resistor - Emitter Base (R2) (Ohms) 22k
Typical Gain (hFE) (Min) 60 @ 5mA, 10V
Max Vce (sat) 250mV @ 300μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 150MHz, 80MHz
Maximum Power Dissipation 125mW
Mounting SMD (SMT)
Case / Package SSSMini6-F1
Win Source Part Number 025639-NP043A200A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NP043A200A CAD Model

Description

The electronic component with Id 266019 is a transistor from Panasonic Electronic Components.

  • Maximum Power Dissipation: 125mW
  • Maximum Current Collector: 80mA
  • Transistor Polarity: 1 NPN, 1 PNP - Pre-Biased (Dual)
  • Typical Gain (hFE): 60 @ 5mA, 10V
  • Supply and Demand Status: Sufficient
