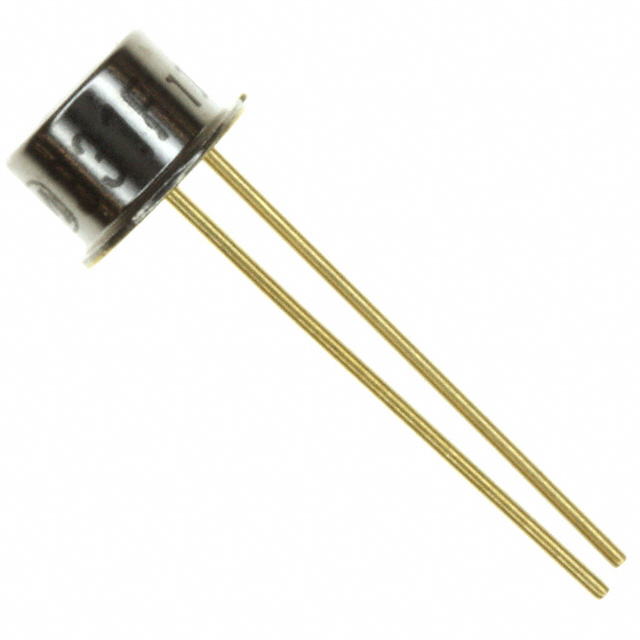

PNZ108CL Panasonic
Same model may have multiple batches, images only for reference.

PNZ108CL

Part No PNZ108CL
Manufacturer Panasonic
Catalog Optical Sensors - Phototransistors
Description NPN PHOTOTRANS 900NM TO-18 SMALL
Datasheet
PNZ108CL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Electronic Components
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 20V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 2μA
Wavelength 900nm
Viewing Angle 160°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Dimension TO-206AA, TO-18-3 Metal Can
Win Source Part Number 1089827-PNZ108CL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PNZ108CL CAD Model

Description

The PNZ108CL is a product of Panasonic Electronic Components.

  • Type: Sensor
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Dimension: TO-206AA, TO-18-3 Metal Can
  • View Orientation: Top View
  • Viewing Angle: 160°
  • Wavelength: 900nm
  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 20V
