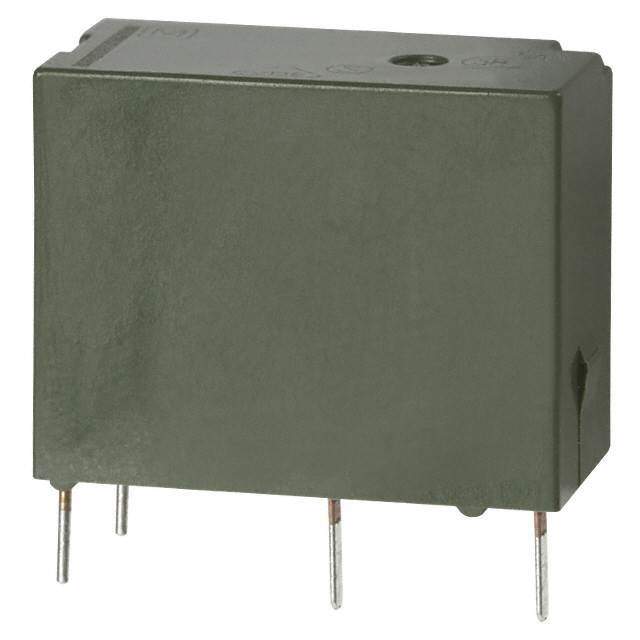

PQ1A-24V Real Image
Same model may have multiple batches, images only for reference.

PQ1A-24V

Part No PQ1A-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series PQ
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number PQ1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names PQ1A-24V-ND,255-2249,PQ1A24V
Standard Package 100
Win Source Part Number 1179017-PQ1A-24V
Ultra Librarian 3D Model Ultra Librarian PQ1A-24V CAD Model

Description

The PQ1A-24V relay manufactured by Panasonic Electric Works is a general-purpose relay with a SPST-NO (1 Form A) contact form and a silver nickel (AgNi) contact material.

  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Switching Voltage: 250VAC and 110VDC - Max
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 70°C
