Same model may have multiple batches, images only for reference.

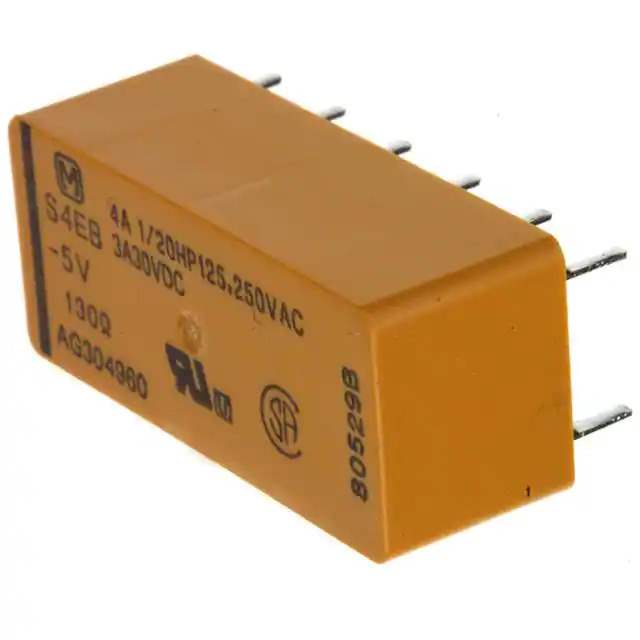

S4EB-5V Real Image
Same model may have multiple batches, images only for reference.

S4EB-5V

Part No S4EB-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PST 4A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series S
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form 4PST-NO (4 Form A)
Contact Rating (Current) 4 A
Switching Voltage 250VAC, 48VDC - Max
Coil Current 38.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 130 Ohms
Base Product Number S4EB
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 662755-S4EB-5V
Ultra Librarian 3D Model Ultra Librarian S4EB-5V CAD Model

Description

The S4EB-5V is a power relay designed for applications requiring high switching capacity. Manufactured by Panasonic, this relay offers reliable performance with a contact form of 4PST-NO (4 Form A).

  • Contact Form: 4PST-NO (4 Form A)
  • Coil Voltage: 5VDC
  • Coil Resistance: 130 Ohms
  • Contact Rating: 4A
  • Switching Voltage (AC): 250VAC
  • Switching Voltage (DC): 48VDC
  • Applications: Industrial control systems and automotive applications
  • Package: Tube
  • Package Quantity: 50 pieces
  • Product Status: Active
