The MOSFET (Metal Oxide) type of transistor from Panasonic Electronic Components is an N-Channel FET that has a drain to source voltage (Vdss) of 30 V.

• Current - Continuous Drain (Id) @ 25°C: 18A (Ta), 70A (Tc)
• Rds On (Max) @ Id, Vgs: 3.3mOhm @ 14.5A, 10V
• Vgs(th) (Max) @ Id: 3V @ 3.35mA

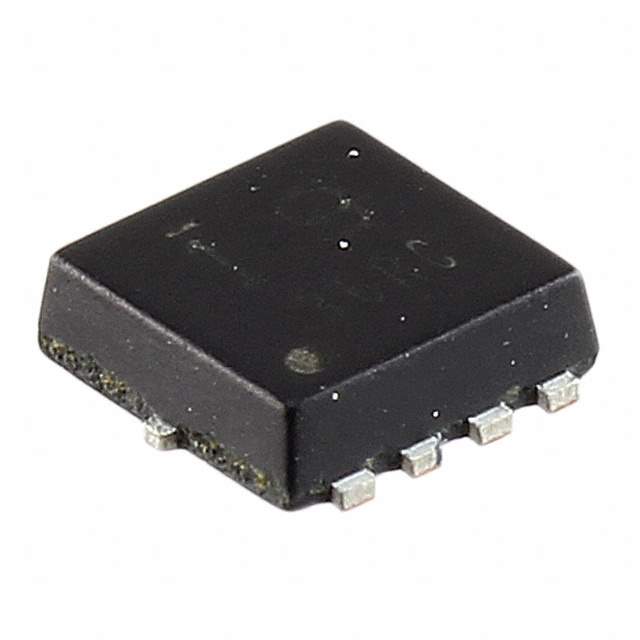

• Package/Case: 8-PowerSMD, Flat Leads
• Standard Package: 3,000
• Series: Not specified
• Technology: MOSFET (Metal Oxide)
• FET Feature: Not specified
• Power Dissipation (max): 2W (Ta), 28W (Tc)
• Operating Temperature Range: 150°C (TJ)
• Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds: 3920 pF @ 10 V
• Vgs (Max): ±20V
