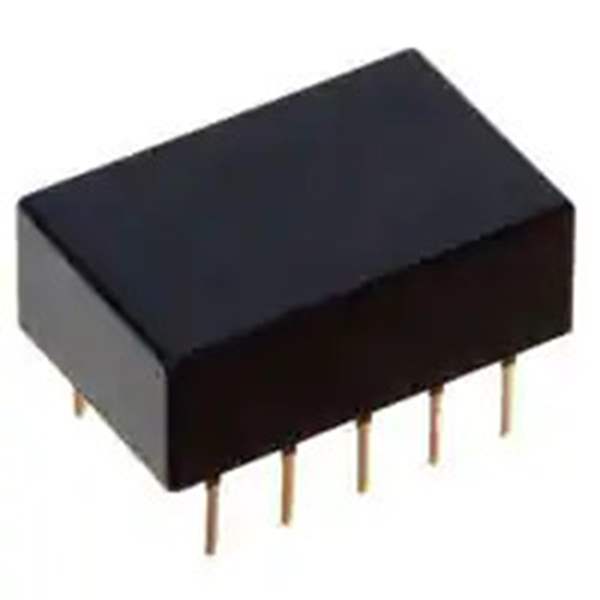

TQ2-L2-24V Panasonic
Same model may have multiple batches, images only for reference.

TQ2-L2-24V

Part No TQ2-L2-24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 24VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series TQ
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 12.5 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 18 VDC
Must Release Voltage -
Operate Time 3 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 1.92 kOhms
Base Product Number TQ2-L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1355486-TQ2-L2-24V
Ultra Librarian 3D Model Ultra Librarian TQ2-L2-24V CAD Model

Description

The 1355486-TQ2-L2-24V is a signal relay from Panasonic Electric Works.

  • Series: TQ
  • Coil Voltage: 24VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 1 A
  • Switching Voltage: 125VAC and 110VDC maximum
  • Coil Current: 12.5 mA
  • Relay Type: Latching, Dual Coil
  • Operate Time: 3 ms
  • Release Time: 3 ms
  • Mounting Type: Through-Hole
  • Package: Tube
  • Contact Material: Silver (Ag) and Gold (Au)
  • Termination Style: PC Pin
  • ECCN: EAR99
  • Application: Telecom
  • Coil Resistance: 1.92 kOhms
