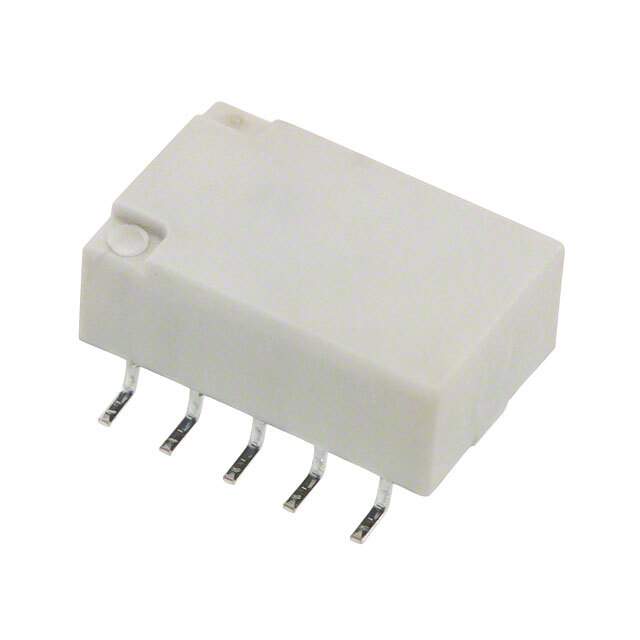

TQ2SA-3V Real Image
Same model may have multiple batches, images only for reference.

TQ2SA-3V

Part No TQ2SA-3V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 3V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 46.7mA
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 125VAC, 220VDC - Max
Turn On Voltage (Max) 2.25 VDC
Turn Off Voltage (Min) 0.3 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 64.3 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 130482-TQ2SA-3V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian TQ2SA-3V CAD Model

Description

The Panasonic Electric Works TQ2SA-3V is a DPDT (2 Form C) relay with gull-wing termination style and SMD (SMT) mounting.

  • Coil Voltage: 3VDC
  • Coil Resistance: 64.3 Ohms
  • Coil Current: 46.7mA
  • Relay Type: Telecom
  • Contact Rating (Current): 2A
  • Switching Voltage: 125VAC, 220VDC - Max
  • Turn-On Voltage (Max): 2.25 VDC
  • Turn-Off Voltage (Min): 0.3 VDC
  • Release Time: 4ms
  • Coil Power: 140 mW
