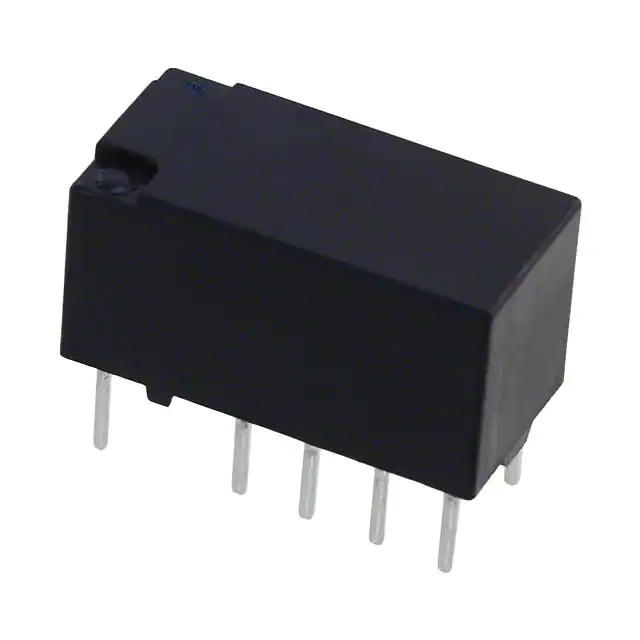

TX2-L2-24V Panasonic
Same model may have multiple batches, images only for reference.

TX2-L2-24V

Part No TX2-L2-24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic Electric Works
Series TX
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 8.3 mA
Coil Type Latching, Dual Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 18 VDC
Must Release Voltage -
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Base Product Number TX2-L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373402-TX2-L2-24V
Ultra Librarian 3D Model Ultra Librarian TX2-L2-24V CAD Model

Description

The TX2-L2-24V is a signal relay from Panasonic Electric Works' TX series.

  • Packaging: Tube
  • Mounting Type: Through Hole
  • Coil Voltage: 24VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2A
  • Switching Voltage: 220VDC
  • Coil Current: 8.3mA
  • Latching Type: Latching, Dual Coil
  • Seal: Sealed, Fully Rated
  • Application: Telecom
  • Must Operate Voltage: 18VDC
  • Operate Time: 4ms
  • Release Time: 4ms
  • Coil Resistance: 2.88kOhms
