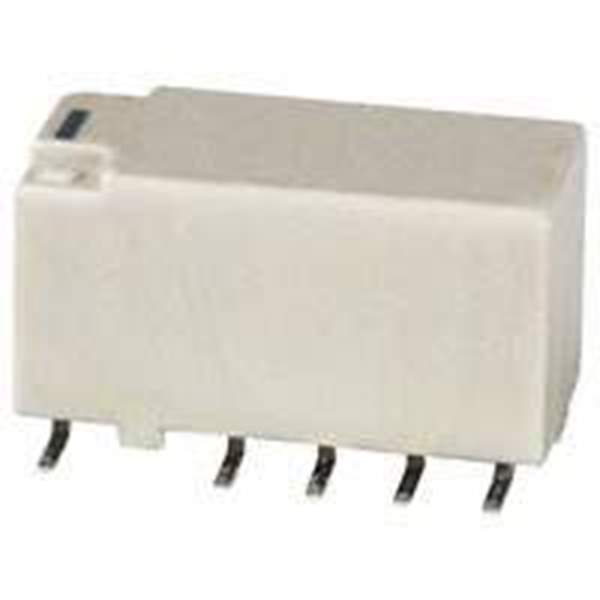

TX2SA-L2-5V-Z Real Image
Same model may have multiple batches, images only for reference.

TX2SA-L2-5V-Z

Part No TX2SA-L2-5V-Z
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 5V
Datasheet
TX2SA-L2-5V-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Latching, Dual Coil
Coil Current 40mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 200 mW
Coil Resistance 125 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 383916-TX2SA-L2-5V-Z
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Signal Processing
Ultra Librarian 3D Model Ultra Librarian TX2SA-L2-5V-Z CAD Model

Description

The Panasonic Electric Works TX2SA-L2-5V-Z is a DPDT (2 Form C) relay used in telecom applications.

  • Manufacturer: Panasonic Electric Works
  • Product: TX2SA-L2-5V-Z
  • Termination Style: Sealed, fully-featured gull-wing
  • Mounting: SMD (SMT)
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Coil Current: 40mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Contact Rating (current): 2A
  • Switching Voltage: 220VDC - Max
  • Turn-on Voltage (Max): 3.75VDC
  • Relay Type: Latching, dual coil
  • Coil Power: 200mW
  • Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Applications: Industrial and signal processing
