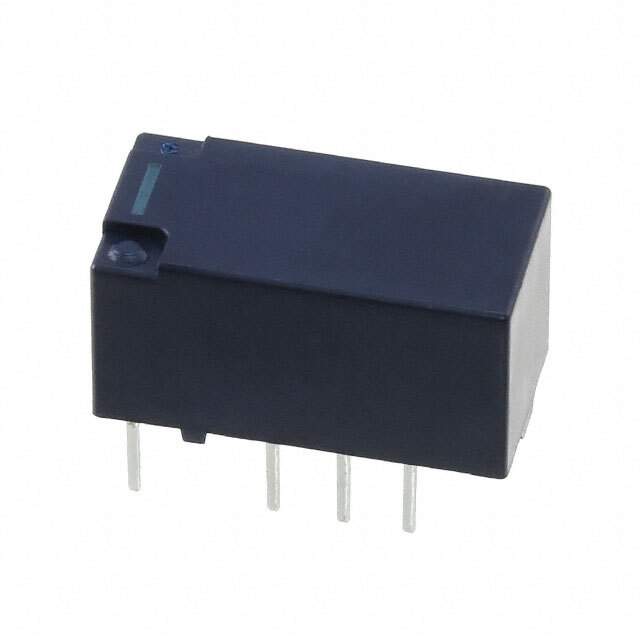

TXS2SL-12V-X

Name: TXS2SL-12V-X
Brand: Panasonic
SKU: 1019294
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TXS2SL-12V-X
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE DPDT 1A 12VDC / General Purpose Relay DPDT (2 Form C) Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Mfr	Panasonic Electric Works
Series	TX-S
Package	Tape & Reel (TR)
Product Status	Obsolete
Mounting	SMD (SMT)
Coil Voltage	12VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1 A
Switching Voltage	110VDC - Max
Coil Current	4.2 mA
Coil Type	Non Latching
Termination Style	Gull Wing
Seal Rating	Sealed - Fully
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Release Time	5 ms
Temperature Range - Operating	-40°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)
Relay Type	General Purpose
Coil Resistance	2.88 kOhms
Base Product Number	TXS2SL
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.41.0020
Other Names	-TXS2SL-12V
Standard Package	500
Win Source Part Number	1019294-TXS2SL-12V-X
Ultra Librarian 3D Model	Ultra Librarian TXS2SL-12V-X CAD Model

Alternative Products

Description

The Panasonic Electric Works TX-S series DPDT signal relay is an excellent choice for various electronic applications.

Coil Voltage: 12VDC
Coil Resistance: 2.88 kOhms
Contact Rating: 1 A
Switching Voltage: up to 110VDC
Operating Temperature: -40°C ~ 70°C
Seal Rating: sealed - fully seal
Packaging: tape & reel
Standard Package: 500
