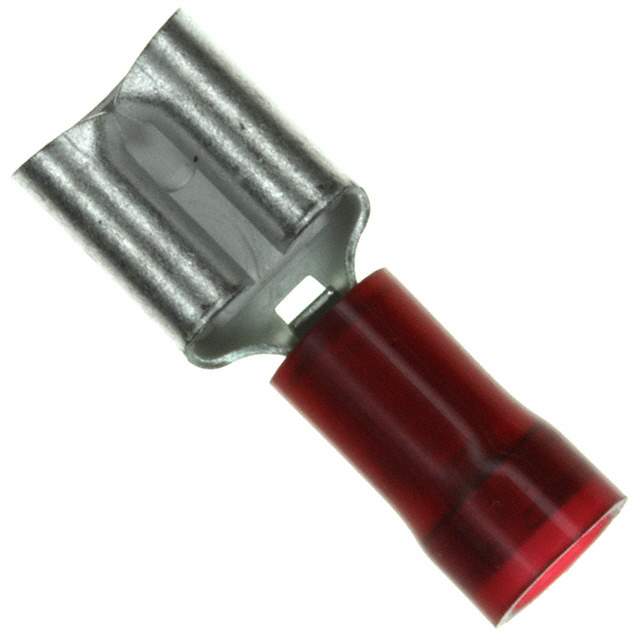

DNF18-250-C Real Image
Same model may have multiple batches, images only for reference.

DNF18-250-C

Part No DNF18-250-C
Manufacturer Panduit Corp
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.250 / Quick Disconnect Terminal 18-22AWG Brass Red F 20.57mm Tin Bottle
Datasheet
DNF18-250-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Series Pan-Term
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.810" (20.57mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Mating End Insulated
Mounting Free Hanging (In-Line)
Features Serrated Termination
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.040" ~ 0.138" (1.02mm ~ 3.51mm)
Win Source Part Number 772803-DNF18-250-C
Popularity Medium
Supply and Demand Status Limited
Family Name DNF18
Introduction Date February 09, 2005
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DNF18-250-C CAD Model

Description

The Panduit Corp 772803-DNF18-250-C is a female crimp terminal with a serrated termination and a contact finish of tin.

  • Wire Gauge: 18-22 AWG
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Overall Length: 0.810 inches
  • Insulation: Non-mating end
  • Series: Pan-Term
  • Mounting Type: Free hanging (in-line)
  • Terminal Color: Red
  • Alternative Parts: RA18-250A, RB14-250A
  • Supply and Demand Status: Limited
