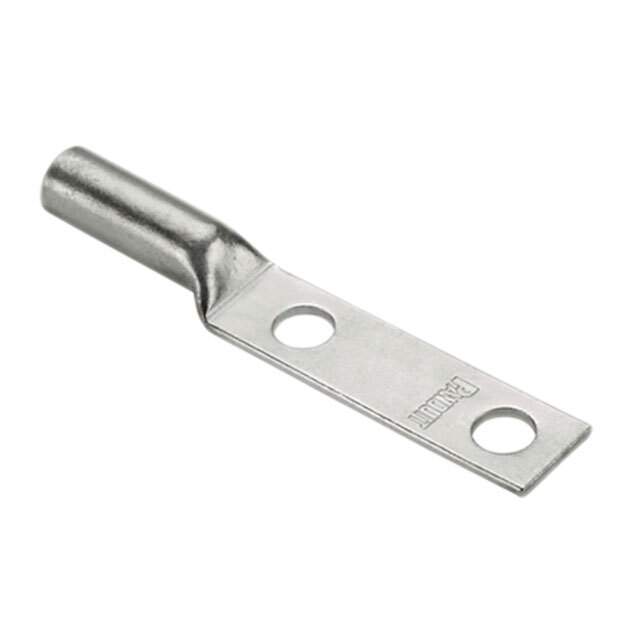

Same model may have multiple batches, images only for reference.

LCMC120-12-X

Name: LCMC120-12-X
Brand: Panduit Corp
SKU: 986159
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCMC120-12-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT RING 120MM #M12 / Terminal Connector Rectangular Ring, Tubular 120mm² M12 Stud
Datasheet	LCMC120-12-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	LCMC
Package	Bulk
Product Status	Obsolete
Terminal Type	Ring, Tubular
Stud/Tab Size	M12 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.138" (3.51mm)
Length - Overall	4.909" (124.69mm)
Width - Outer Edges	1.083" (27.51mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	120mm²
Insulation	Non-Insulated
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID	0.598" (15.19mm)
Diameter - Barrel OD	0.732" (18.59mm)
Diameter - Ring ID	0.551" (14.00mm)
Base Product Number	LCMC
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498362304
Standard Package	1
Win Source Part Number	986159-LCMC120-12-X
Ultra Librarian 3D Model	Ultra Librarian LCMC120-12-X CAD Model

Alternative Products

Description

The Panduit Corp LCMC120-12-X is a rectangular connector terminal that is designed to provide a secure and reliable connection.

Termination: Crimp Barrel
Material: Copper
Contact Finish: Tin
Insulation: Non-Insulated
Terminal Type: Ring and Tubular
Width: 1.083 inches
Length: 4.909 inches
Tab Thickness: 0.138 inches
Stud Size: M12
Barrel ID Diameter: 0.598 inches
Barrel OD Diameter: 0.732 inches
Ring ID Diameter: 0.551 inches
Mounting: Free Hanging
