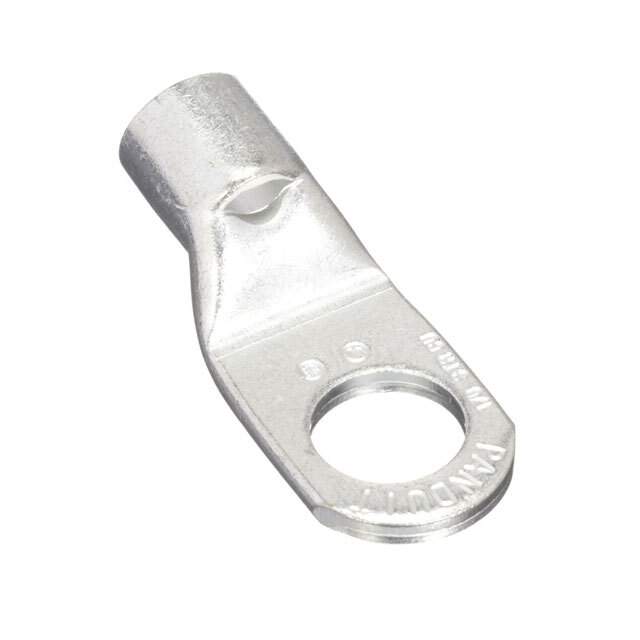

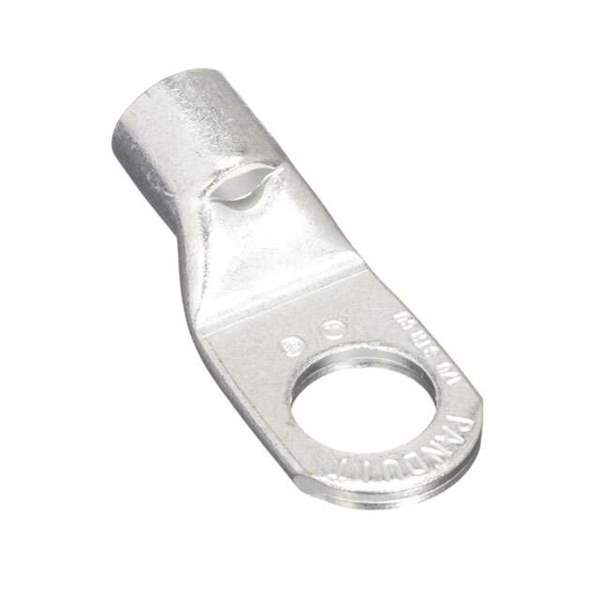

S3/0-56R-5 Real Image
Same model may have multiple batches, images only for reference.

S3/0-56R-5

Part No S3/0-56R-5
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S3/0-56R-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 5/16 Stud
Thickness 0.130" (3.30mm)
Width - Outer Edges 0.960" (24.38mm)
Length - Overall 2.100" (53.34mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 3/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S3/0
Other Names S3/0-56R-5,298-15782
Standard Package 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285150-S3/0-56R-5
Ultra Librarian 3D Model Ultra Librarian S3/0-56R-5 CAD Model

Description

The S3/0-56R-5 is a ring connector terminal from Panduit Corp. Panduit Corp

  • Termination: Crimp with a Funnel Opening
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Stud/Tab Size: 5/16
  • Thickness: 0.130" (3.30mm)
  • Width: 0.960" (24.38mm) - Outer Edges
  • Length: 2.100" (53.34mm) - Overall
  • Product Status: Obsolete
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
