Same model may have multiple batches, images only for reference.

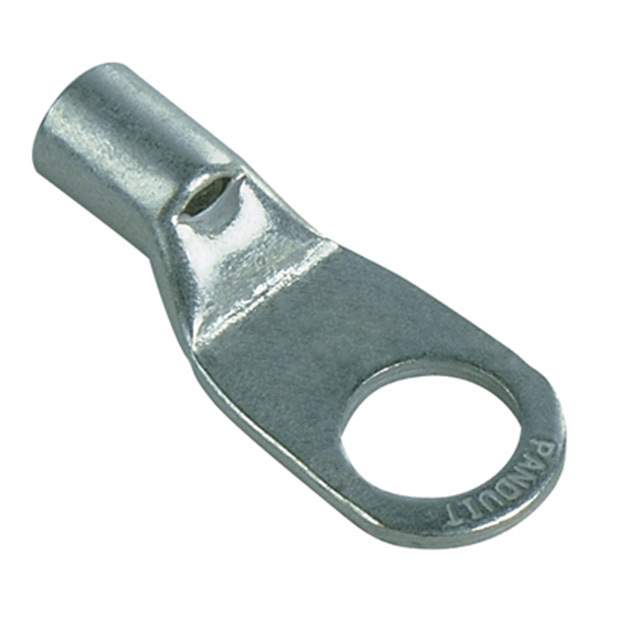

S6-14R-E Real Image
Same model may have multiple batches, images only for reference.

S6-14R-E

Part No S6-14R-E
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S6-14R-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.080" (2.03mm)
Width - Outer Edges 0.480" (12.19mm)
Length - Overall 1.300" (33.02mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 6 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S6-14
Other Names S6-14R-E,298-11885
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285181-S6-14R-E
Ultra Librarian 3D Model Ultra Librarian S6-14R-E CAD Model

Description

The Panduit Corp S6-14R-E is a flat-sided terminal that belongs to the connectors, interconnects category.

  • Series: Pan-Term
  • Package: bulk
  • Insulation: non-insulated
  • Stud Size: 1/4
  • Thickness: 0.080 inches
  • Width: 0.480 inches
  • Length Overall: 1.300 inches
