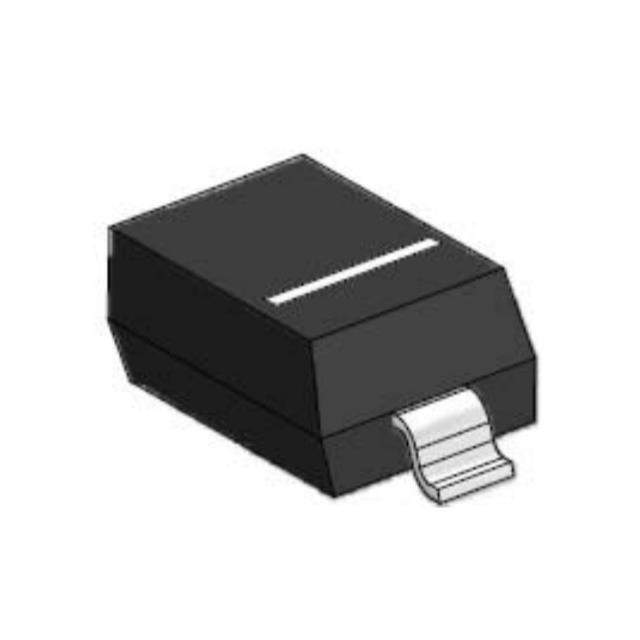

The 1N4148WS-L is a high-speed switching diode manufactured by Panjit. It is designed for applications requiring fast switching speeds and low leakage current. This diode is commonly used in various electronic circuits for signal processing, protection, and rectification.

Applications

• High-speed switching circuits
• General-purpose rectification
• Signal processing
• Protection circuits
• Clipping and clamping circuits

Features

• Fast switching speed: Trr ≤ 4 ns
• Low forward voltage: VF ≤ 1.0 V at IF = 10 mA
• Low reverse leakage current: IR ≤ 25 nA at VR = 75 V
• High reverse voltage: VRRM = 100 V
• Surface mount package: SOD-323
• Lead-free finish; RoHS compliant

Benefits

• Improved circuit performance due to fast switching speed.
• Reduced power loss due to low forward voltage drop.
• Enhanced circuit reliability due to low reverse leakage current.
• Compact design due to small surface mount package.
• Environmentally friendly due to lead-free and RoHS compliance.

Technical Specifications

The 1N4148WS-L diode has the following key specifications:

• Maximum Repetitive Reverse Voltage (VRRM): 100 V
• Maximum Forward Voltage (VF): 1.0 V at IF = 10 mA
• Maximum Reverse Recovery Time (Trr): 4 ns
• Maximum Reverse Current (IR): 25 nA at VR = 75 V
• Operating Temperature Range: -65°C to +150°C
• Package: SOD-323

The SOD-323 package is a small surface mount package that allows for high-density circuit designs. The diode is designed to withstand high temperatures, making it suitable for a wide range of applications.
