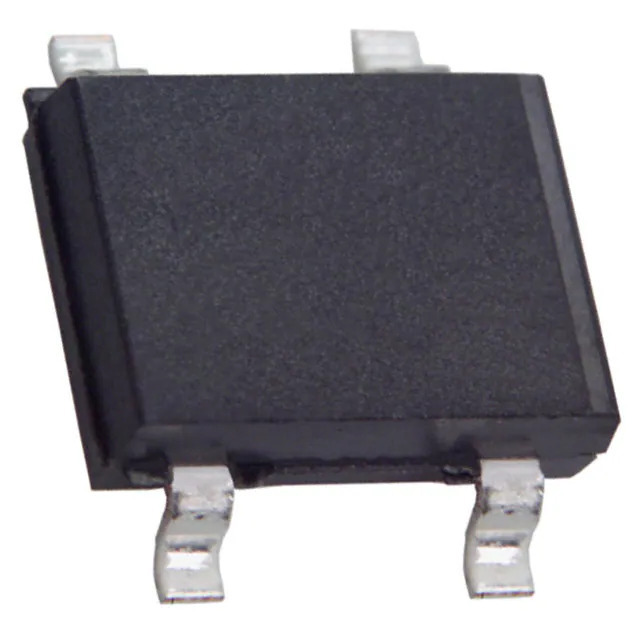

B4S_R2_00001 Panjit
Same model may have multiple batches, images only for reference.

B4S_R2_00001

Part No B4S_R2_00001
Manufacturer Panjit
Catalog Bridge Rectifiers
Description MINI SURFACE MOUNT GLASS PASSIVA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Panjit International Inc.
Series B1S
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 800 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 500 mA
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-MDI
Base Product Number B4S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368067-B4S_R2_00001
Ultra Librarian 3D Model Ultra Librarian B4S_R2_00001 CAD Model

Description

The B4S_R2_00001 is a bridge rectifier diode manufactured by Panjit International Inc.

  • Current-Average Rectified Rating: 800 mA
  • Voltage-Forward Rating: 1V @ 500 mA
  • Voltage-Peak Reverse Rating: 400V
  • Current-Reverse Leakage: 5 µA @ 400V
  • Operating Temperature Range: -55°C to 150°C
  • Package: Tape and Reel
