Same model may have multiple batches, images only for reference.

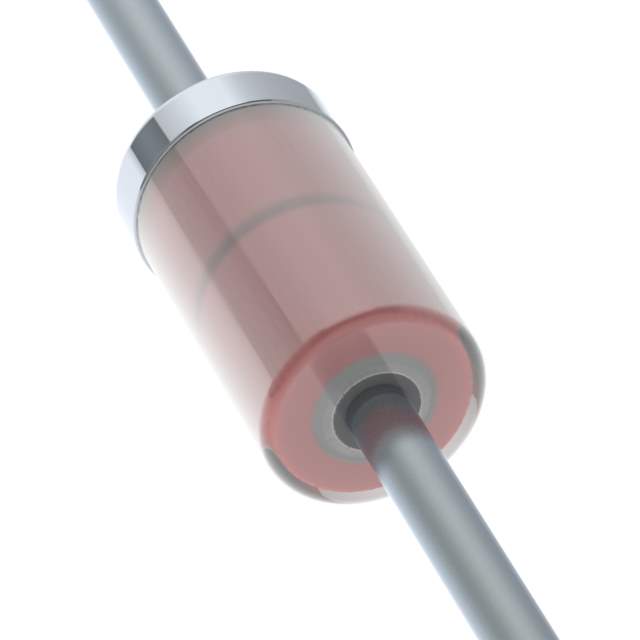

BAV21_AY_00001 Real Image
Same model may have multiple batches, images only for reference.

BAV21_AY_00001

Part No BAV21_AY_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SWITCHING DIODES  /  Diode Standard 200 V 200mA Through Hole DO-35
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Cut Tape (CT),Tape & Box (TB)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 200 V
Capacitance @ Vr, F 3pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 3757-BAV21_AY_00001CT,3757-BAV21_AY_00001TB
Standard Package 5,000
Win Source Part Number 1048282-BAV21_AY_00001
Ultra Librarian 3D Model Ultra Librarian BAV21_AY_00001 CAD Model

Description

The Panjit standard diode has a maximum DC reverse voltage of 200V and an average rectified current of 200mA.
