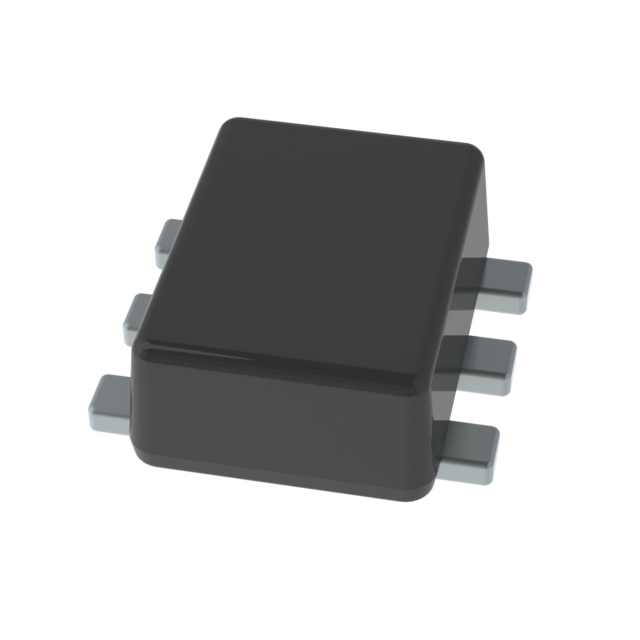

Same model may have multiple batches, images only for reference.
MMDT3904TB6_R1_00001 Panjit – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MMDT3904TB6_R1_00001

Part No MMDT3904TB6_R1_00001
Manufacturer Panjit
Catalog Transistors (BJT) - Arrays
Description Bipolar (BJT) Transistor Array 2 NPN (Dual) 40V 200mA 300MHz 225mW Surface Mount SOT-563
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panjit International Inc.
Packaging Reel - TR
Transistor Type 2 NPN (Dual)
Current - Collector (Ic) (Max) 200mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 300mV @ 5mA, 50mA
Current - Collector Cutoff (Max) 50nA
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 10mA, 1V
Power - Max 225mW
Frequency - Transition 300MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-563, SOT-666
Supplier Device Package SOT-563
Base Product Number MMDT3904
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 1479016-MMDT3904TB6_R1_00001
Ultra Librarian 3D Model Ultra Librarian MMDT3904TB6_R1_00001 CAD Model
