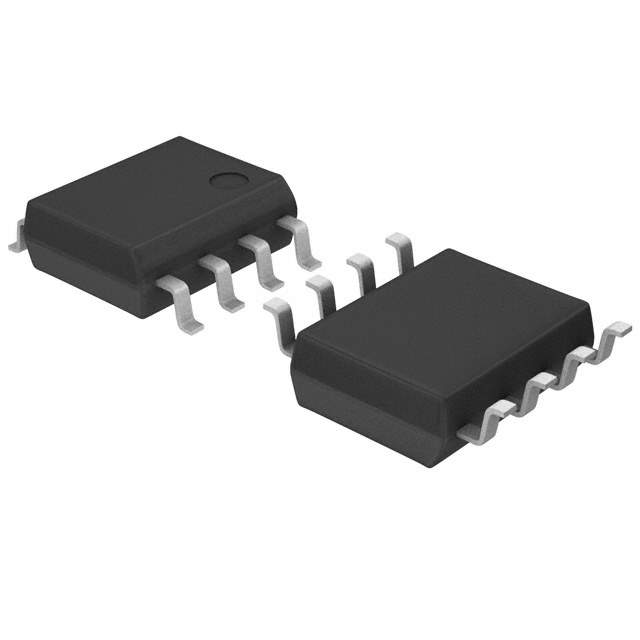

PJL9438A_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

PJL9438A_R2_00001

Part No PJL9438A_R2_00001
Manufacturer Panjit
Catalog Transistors - FETs, MOSFETs - RF
Description 60V N-CHANNEL ENHANCEMENT MODE M / N-Channel 60 V 6A (Ta) 2.5W (Ta) Surface Mount 8-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Panjit International Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 6A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 34mOhm @ 6A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1173 pF @ 25 V
Power Dissipation (Max) 2.5W (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 8-SOP
Package / Case 8-SOIC (0.154", 3.90mm Width)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 3757-PJL9438A_R2_00001CT,3757-PJL9438A_R2_00001TR,3757-PJL9438A_R2_00001DKR
Standard Package 2,500
Win Source Part Number 1068562-PJL9438A_R2_00001
Ultra Librarian 3D Model Ultra Librarian PJL9438A_R2_00001 CAD Model

Description

The Panjit MOSFET transistor is an N-channel component with a drain to source voltage (Vdss) of 60 V and a continuous drain current (Id) of 6A (Ta) @ 25°C.

  • Channel Type: N-Channel
  • Drain to Source Voltage (Vdss): 60 V
  • Continuous Drain Current (Id): 6A (Ta) @ 25°C
  • Maximum Rds On: 34mOhm @ 6A, 10V
  • Maximum Gate Charge (Qg): 20 nC @ 10 V
  • Mounting Type: Surface Mount
  • Package/Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOP
  • Input Capacitance (Ciss): 1173 pF @ 25 V
  • RoHS: Compliant
  • Maximum Power Dissipation: 2.5W (Ta)
  • Operating Temperature: -55°C to 150°C (TJ)
  • MSL Level: Unlimited
