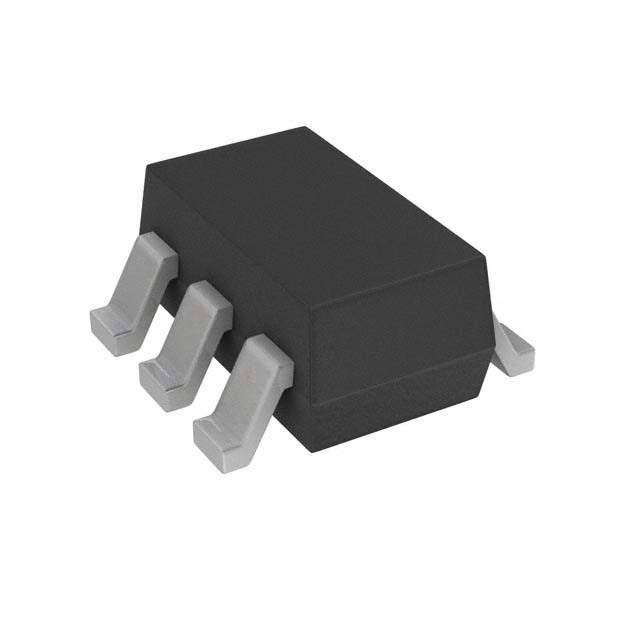

The PJS6401 is a P-Channel enhancement mode MOSFET from Panjit. It is designed for load switch applications and power management in portable devices due to its low on-resistance and small footprint. This MOSFET offers excellent performance in terms of switching speed and efficiency.
Applications:
- Load Switching: Ideal for controlling power to various components in electronic devices.
- Power Management: Used in battery-powered devices for efficient power distribution.
- DC-DC Conversion: Suitable for DC-DC converters where a low on-resistance MOSFET is required.
- Portable Devices: Commonly found in smartphones, tablets, and laptops.
Features:
- P-Channel Enhancement Mode: Allows for easy gate drive.
- Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
- Small Footprint: Saves valuable board space in compact designs.
- Fast Switching Speed: Enables efficient switching performance.
- Low Gate Charge: Reduces gate drive requirements and improves efficiency.
Benefits:
- Improved Efficiency: Low on-resistance minimizes power dissipation, leading to longer battery life in portable devices.
- Compact Design: Small footprint allows for integration into space-constrained applications.
- Simplified Circuit Design: P-Channel configuration simplifies gate drive circuitry.
- Reliable Performance: Designed for stable and consistent operation in demanding environments.
Specifications:
The PJS6401 typically features a drain-source voltage (VDS) rating of -20V, a continuous drain current (ID) of -3.5A, and an on-resistance (RDS(on)) of 60 mΩ at VGS = -4.5V. The gate-source voltage (VGS) is rated at ±12V. It is typically available in a SOT-23 package.
