The SBT20120LFCT_T0 is a Schottky Barrier Rectifier designed for high-efficiency rectification. This device features a low forward voltage drop and fast switching speed, making it ideal for applications requiring minimal power loss and high-frequency operation. The rectifier is commonly used in switching power supplies, freewheeling diodes, and DC-DC converters.

Applications

• Switching power supplies
• Freewheeling diodes
• DC-DC converters
• Reverse polarity protection
• High-frequency rectification

Features

• Low forward voltage drop
• High surge current capability
• Fast switching speed
• High-temperature operation
• Lead-free finish

Benefits

• Increased efficiency in power conversion
• Reduced power dissipation
• Improved system reliability
• Compliance with environmental standards

Technical Specifications

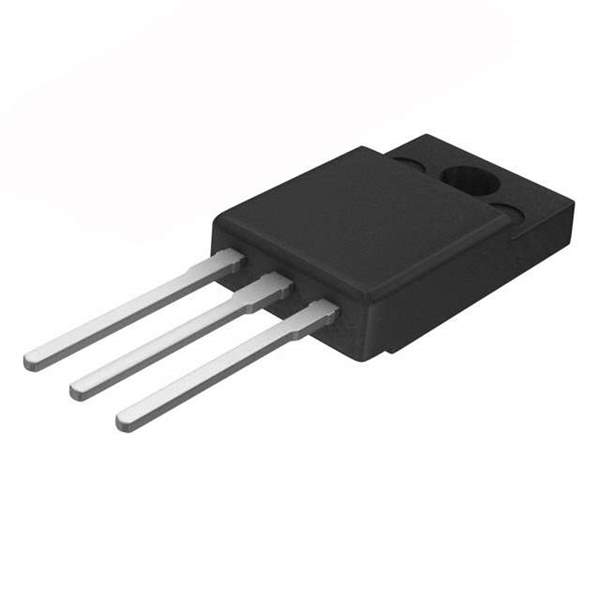

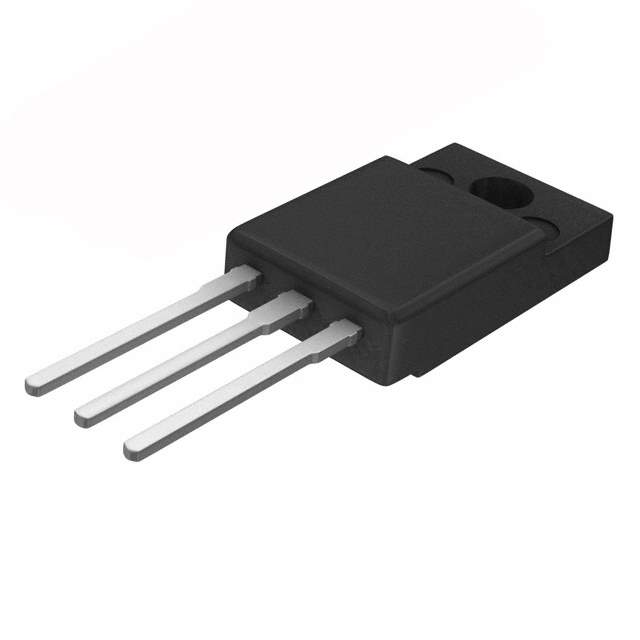

The SBT20120LFCT_T0 has a maximum repetitive peak reverse voltage of 120V and an average forward current of 20A. It features a low forward voltage drop, typically 0.7V at 10A. The device has a high surge current capability, allowing it to withstand transient current spikes. The fast switching speed enables efficient operation in high-frequency applications. The rectifier is designed for high-temperature operation, ensuring reliable performance in demanding environments. It is available in a TO-220 package.
