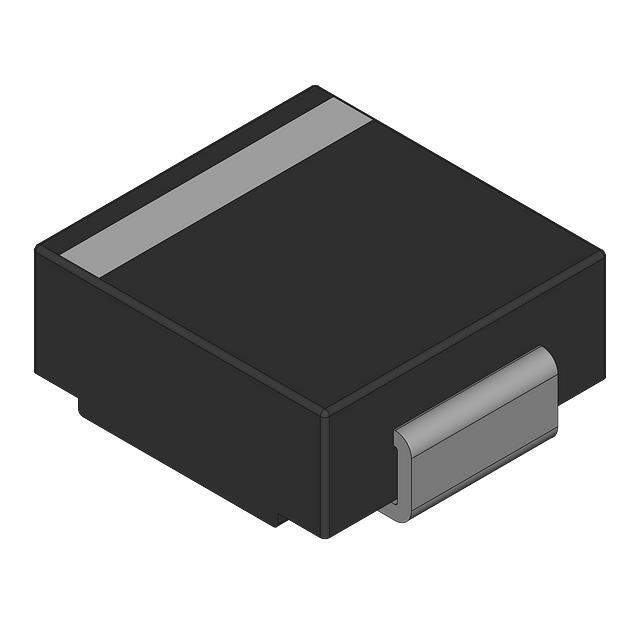

SK34_R1_00001

Name: SK34_R1_00001
Brand: Panjit
SKU: 1325732
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SK34_R1_00001
Manufacturer	Panjit
Catalog	Diodes, Rectifiers - Single
Description	SMC, SKY / Diode Schottky 40 V 3A Surface Mount SMC (DO-214AB)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Panjit International Inc.
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	500 mV @ 3 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	200 µA @ 40 V
Mounting	Surface Mount
Case / Package	DO-214AB, SMC
Supplier Device Package	SMC (DO-214AB)
Operating Temperature - Junction	-55°C ~ 150°C
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	3757-SK34_R1_00001TR,3757-SK34_R1_00001CT,3757-SK34_R1_00001DKR
Standard Package	800
Win Source Part Number	1325732-SK34_R1_00001
Ultra Librarian 3D Model	Ultra Librarian SK34_R1_00001 CAD Model

Alternative Products

Description

The SK34_R1_00001 is a fast recovery Schottky diode manufactured by Panjit International Inc.

Designed For: Use in rectifier applications
Maximum DC Reverse Voltage: 40 V
Average Rectified Current: 3 A
Voltage Drop: 500 mV @ 3 A
Reverse Leakage Current: 200 µA @ 40 V
Package: SMC (DO-214AB) package
Supplied On: A reel
Operating Temperature Range: -55°C to 150°C
ROHS3: Compliant
ECCN: EAR99
