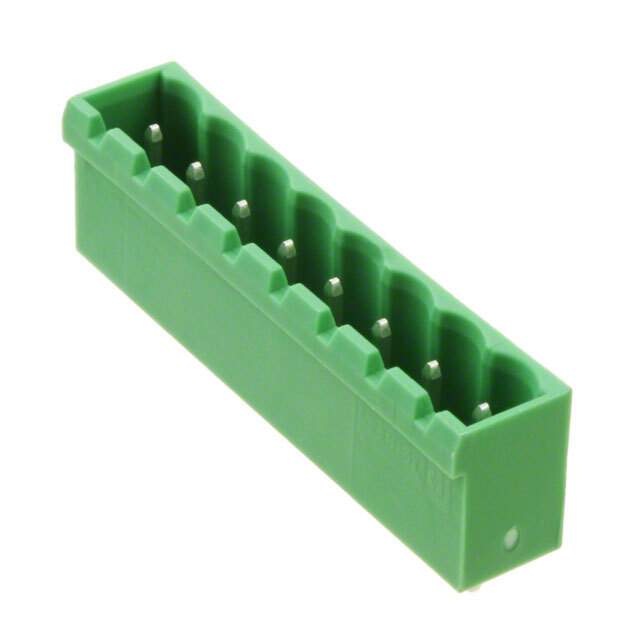

Same model may have multiple batches, images only for reference.

1755574

Name: 1755574
Brand: Phoenix Contact
SKU: 1332158
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1755574
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 8POS VERT 5MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	400 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-1146,MSTBVA 2.5/8-G,MSTBVA2,5/8-G
Standard Package	100
Win Source Part Number	1332158-1755574
Ultra Librarian 3D Model	Ultra Librarian 1755574 CAD Model

Alternative Products

Description

The Phoenix Contact 1332158-1755574 is a connector component with a male pin header type.

Type: Header, Male Pins
Positions per Level: 8
Levels: 1
Pitch: 0.197 inches
Header Orientation: Vertical
Termination Style: Solder
Standard Package: 100
Current Rating: 12A
Voltage Rating (IEC): 400V
Voltage Rating (UL): 300V
Housing Material: Polyamide (PA) and Nylon
Material Flammability Rating: UL94 V-0
Contact Mating Finish: Tin
