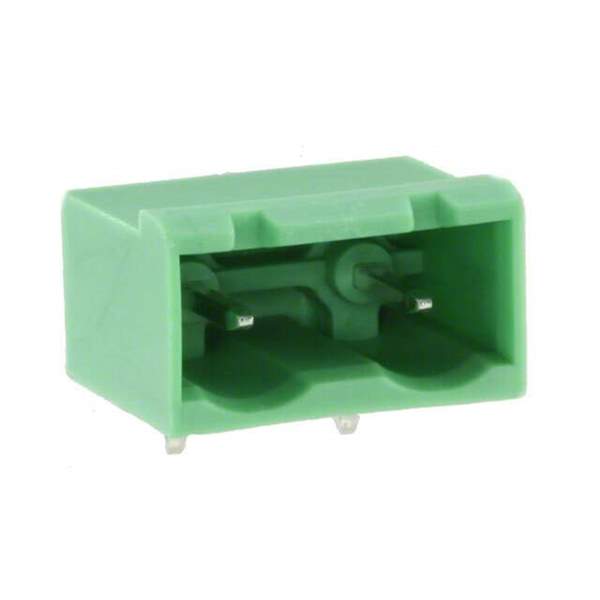

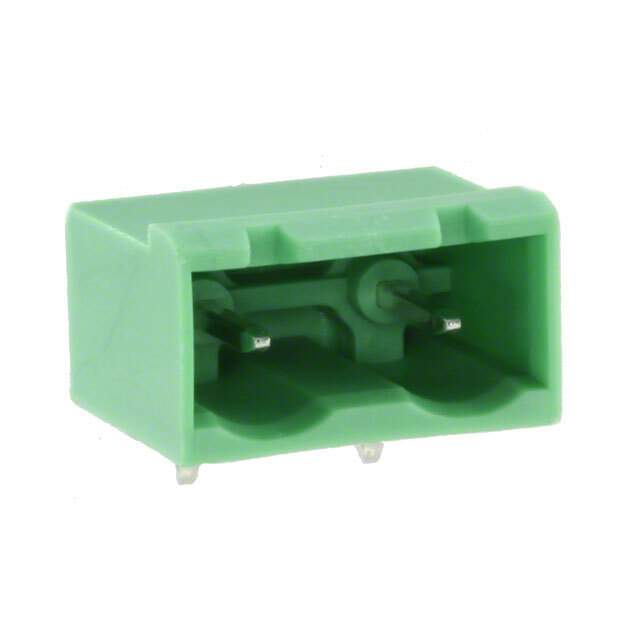

1766343

Name: 1766343
Brand: Phoenix Contact
SKU: 1332260
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1766343
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 2POS 90DEG 7.5MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.295" (7.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.339" (8.61mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1766343-NDR,GMSTBA2,5/2-G,1766343-ND,277-5923
Standard Package	250
Win Source Part Number	1332260-1766343
Ultra Librarian 3D Model	Ultra Librarian 1766343 CAD Model

Alternative Products

Description

The Phoenix Contact 1332260-1766343 is a male pin header with 2 positions per level and 2 levels.

Pitch: 0.295 inches
Shrouded: all sides
Orientation: right angle
Termination Style: solder
Current Rating: 12A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Material: Polyamide (PA), Nylon
Flammability Rating: UL94 V-0
Contact Mating Finish: tin
RoHS3 Compliant: yes
Packaging: bulk
Insulation Height: 0.339 inches
Contact Tail Length: 0.138 inches
