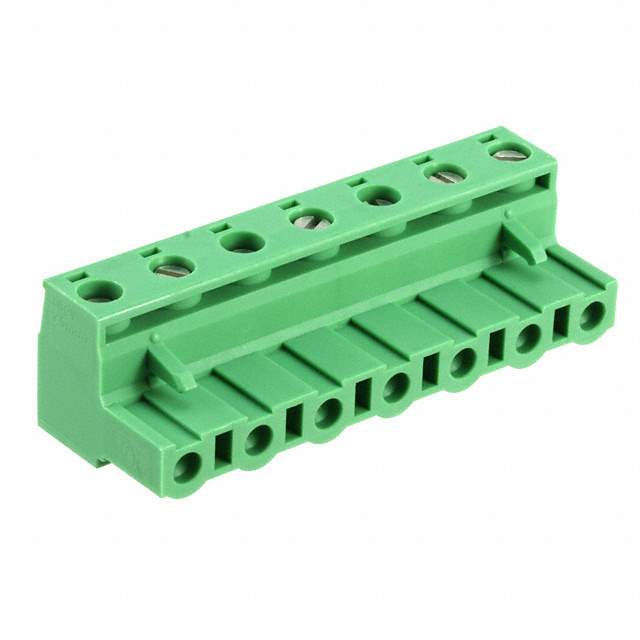

Same model may have multiple batches, images only for reference.

1767054

Get a Quote

Part No	1767054
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 7POS STR 7.62MM / 7 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON GMSTB
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	7
Positions Per Level	7
Number of Levels	1
Pitch	0.300" (7.62mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	1 kV
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm²
Color	Green
Temperature Range - Operating	-
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Contact Material	-
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	-
Insulation Height	0.591" (15.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	50 pcs
Win Source Part Number	1380563-1767054
Ultra Librarian 3D Model	Ultra Librarian 1767054 CAD Model

Alternative Products

Description

The COMBICON GMSTB series terminal block header from Phoenix Contact is a reliable and versatile solution for electrical connections.

Product Series: COMBICON GMSTB
Positions per Level: 7
Number of Levels: 1
Pitch: 0.300" (7.62mm)
Termination Style: Screw-Rising Cage Clamp
Current Rating (IEC): 12A
Voltage Rating (IEC): 1kV
Material: Polyamide (PA) and Nylon
Color: Green
Features: Retention Latches
Product Status: Active
Package: Bulk (50 pcs)
