Same model may have multiple batches, images only for reference.

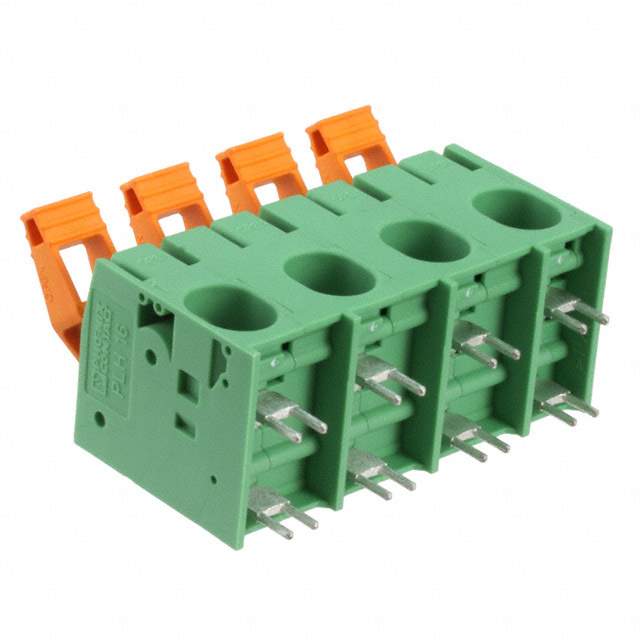

1770555 Real Image
Same model may have multiple batches, images only for reference.

1770555

Part No 1770555
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Wire-To-Board Terminal Block, 4, 1 Kv, 76 A, 18 Awg, 4 Awg, 16 Mm Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Contact Material Copper
Contact Plating Tin
Current 66 A
Current Rating 76 A
Depth 49.7 mm
Gender Male
Height 29 mm
Housing Color Green
Housing Material Nylon
Lead Free Lead Free
Length 30.5 mm
Material Polyamide
Max Current Rating 76 A
Mount PCB, Panel, Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Levels 1
Number of Pins 4
Number of Positions 4
Number of Positions Per Level 4
Number of Rows 1
Orientation Straight
Pitch 15 mm
RoHS Compliant
Termination Screwless
Voltage 600 V
Voltage Rating 1 kV
Weight 8.000009 g
Width 30.5 mm
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 4 AWG
Win Source Part Number 1191904-1770555
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1770555 CAD Model

Description

The Phoenix Contact 1770555 is a terminal block that is used in various electronic applications.

  • Positions: 4
  • Levels: 1
  • Pitch: 15 mm
  • Color: Green
  • Contact Material: Copper with a tin plating
  • Voltage Rating: 1 kV
  • Current Rating: 76 A
  • Supply and Demand Status: Limited
  • Manufacturer: Phoenix Contact
