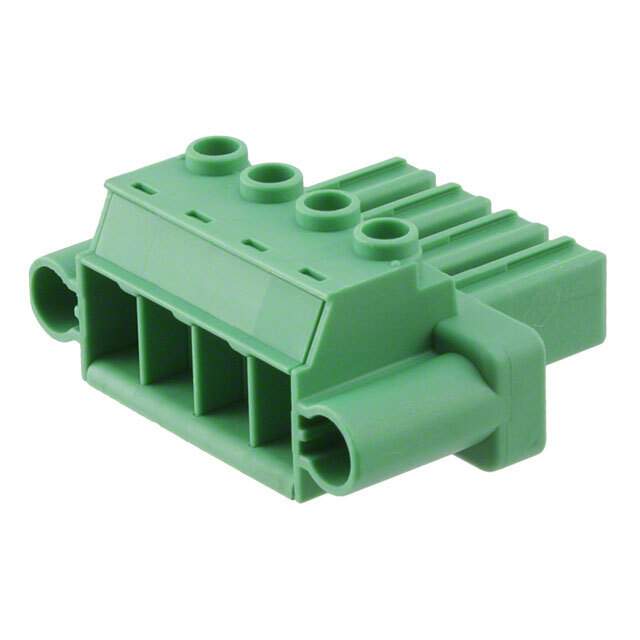

Same model may have multiple batches, images only for reference.

1777859

Name: 1777859
Brand: Phoenix Contact
SKU: 1332215
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1777859
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 4POS STR 7.62MM / 4 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	41 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	8-24 AWG
Wire Gauge or Range - mm2	0.2-10mm²
Color	Green
Contact Mating Finish	Tin
Features	Mating Flange, Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.776" (19.70mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1777859-ND,PC54STF1762,PC5/4-STF1-7,62,277-8714
Standard Package	50
Win Source Part Number	1332215-1777859
Ultra Librarian 3D Model	Ultra Librarian 1777859 CAD Model

Description

The Phoenix Contact Terminal Blocks Headers, Plugs and Sockets is a plug female socket type.

Positions per Level: Four
Number of Levels: One
Pitch: 0.300 inches (7.62mm)
Plug Wire Entry: 180 degrees
Termination Style: Screw-rising cage clamp
Current-IEC: 41A
Voltage-IEC: 1 kV
Current-UL: 41A
Voltage-UL: 600V
Wire Gauge or Range: 8-24 AWG or 0.2-10mm²
Color: Green
Contact Mating Finish: Tin
Features: Mating flange and retention latches (non-wire side)
Housing Material: Polyamide (PA), nylon
Material Flammability Rating: UL94 V-0
RoHS Compliant: Yes
Wire Strip Length: 10mm
