Same model may have multiple batches, images only for reference.

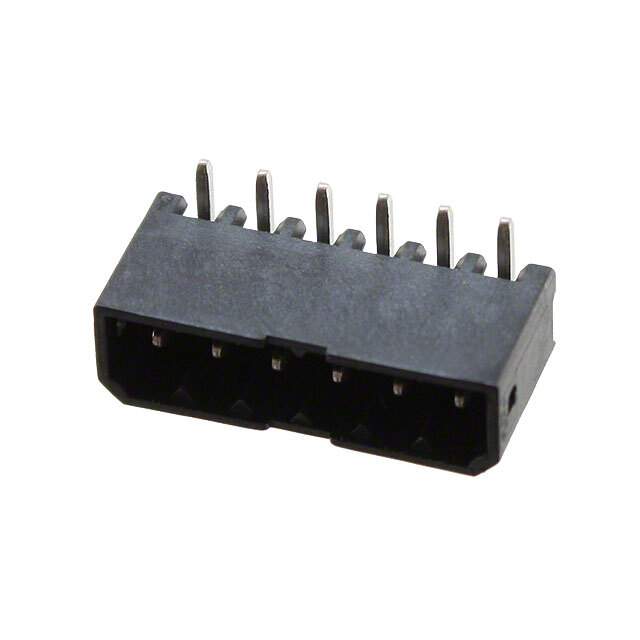

1778667 Real Image
Same model may have multiple batches, images only for reference.

1778667

Part No 1778667
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 6POS 90DEG 2.5MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
Datasheet
1778667 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Reel - TR
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 6
Number of Levels 1
Pitch 0.098" (2.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 6A
Voltage - IEC 160 V
Color Black
Contact Mating Finish Tin
Features Pick and Place Cap
Material Flammability Rating UL94 V-0
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.083" (2.10mm)
Insulation Height 0.197" (5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number PTSM0,5/6-HH-2,5-THRR32,277-2312-1,277-2312-2
Standard Package 500
Win Source Part Number 1332135-1778667
Ultra Librarian 3D Model Ultra Librarian 1778667 CAD Model

Description

The Phoenix Contact 1778667 is a terminal block header that has a pitch of 0.098" (2.50mm) and a header orientation of 90°, right angle.

  • Positions Per Level: 6
  • Levels: 1
  • Mounting: through-hole
  • Current Rating: 6A
  • Voltage Rating (IEC): 160V
  • Package Type: reel - TR
  • Standard Package: 500
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
