Same model may have multiple batches, images only for reference.

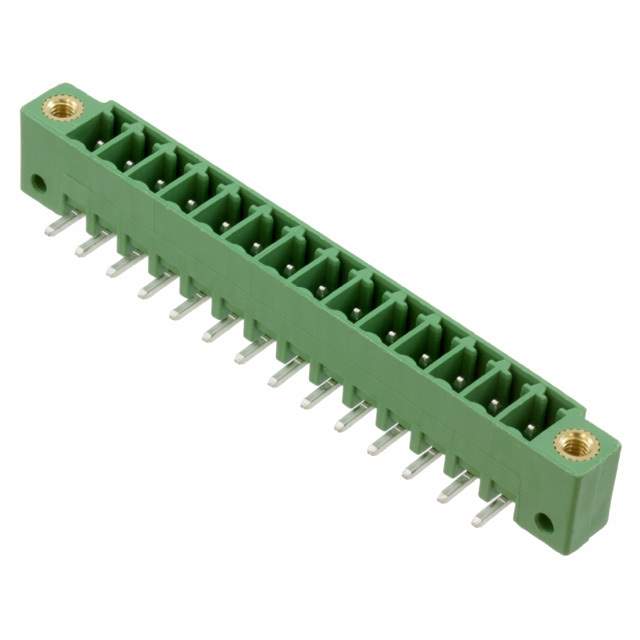

1827981 Real Image
Same model may have multiple batches, images only for reference.

1827981

Part No 1827981
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 14POS 3.81MM / 14 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet
1827981 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Positions Per Level 14
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.285" (7.25mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MC1,5/14-GF-3,81,1827981-ND,277-6927,MC 1,5/14-GF-3,81
Standard Package 50
Win Source Part Number 1332214-1827981
Ultra Librarian 3D Model Ultra Librarian 1827981 CAD Model

Description

The 1332214-1827981 is a shrouded header with male pins, manufactured by Phoenix Contact.

  • Type: Single-level connector
  • Positions per Level: 14
  • Pitch: 0.150 inches
  • Header Orientation: 90 degrees, right angle
  • Termination Style: Solder
  • Contact Mating Finish: Tin
  • Current: 8A
  • Voltage (IEC): 250V
  • Voltage (UL): 300V
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 50
  • Mounting: Through hole
  • Features: Mating and mounting flange
  • Insulation Height: 0.285 inches
  • Contact Tail Length: 0.134 inches
  • RoHS Compliant: Yes
