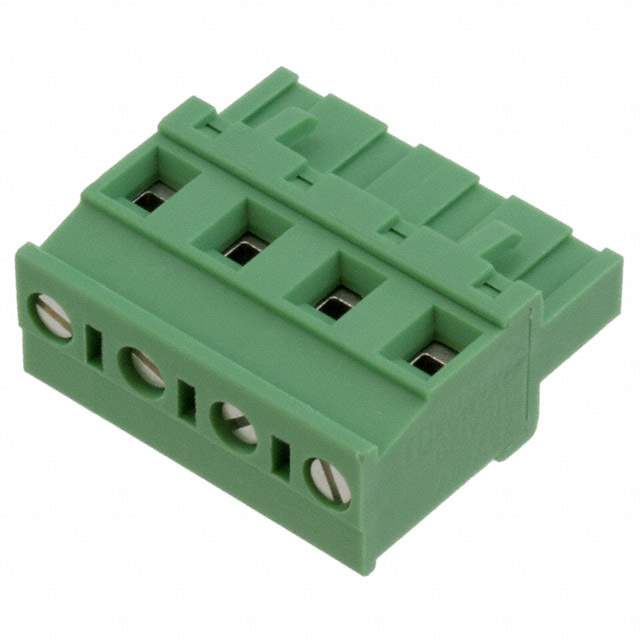

Same model may have multiple batches, images only for reference.

1832549

Name: 1832549
Brand: Phoenix Contact
SKU: 1332217
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1832549
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 4POS 7.62MM / 4 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 90° Free Hanging (In-Line)
Datasheet	1832549 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	90°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	1 kV
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Retention Latches (Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.024" (26.01mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	GMVSTBR2,5/4-ST-7,62,277-6412,1832549-ND,GMVSTBR 2,5/ 4-ST-7,62
Standard Package	50
Win Source Part Number	1332217-1832549
Ultra Librarian 3D Model	Ultra Librarian 1832549 CAD Model

Alternative Products

Description

The Phoenix Contact plug female socket connector is a 4-position connector.

Positions: 4
Positions per Level: 4
Levels: 1
Pitch: 0.300 inches (7.62mm)
Plug Wire Entry: 90°
Termination Style: Screw-rising cage clamp
Color: Green
Current-IEC: 12A
Voltage-IEC: 1 kV
Current-UL: 15A
Voltage-UL: 300V
Wire Gauge or Range: 12-30 AWG
Wire Gauge or Range: 0.2-2.5mm2
Housing Material: Polyamide (PA), nylon
Material Flammability Rating: UL94 V-0
Standard Package: 50
Mounting Style: Free-hanging (in-line)
Torque-Screw: 0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Size: M3
Wire Strip Length: 7mm
ECCN: EAR99 compliant
