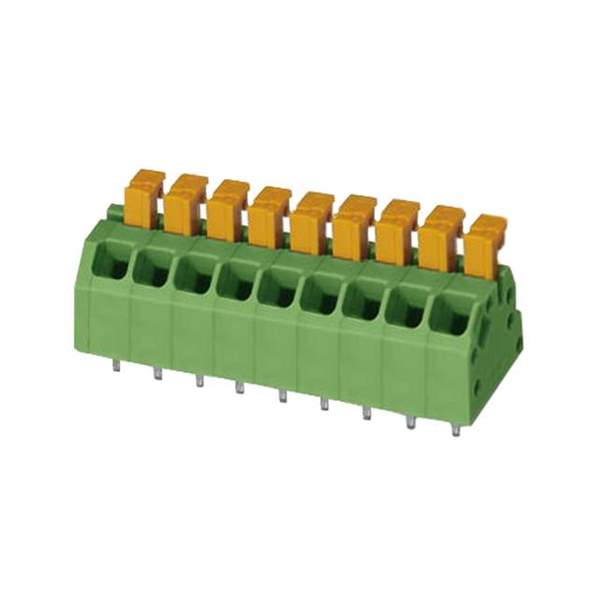

1864354 Real Image
Same model may have multiple batches, images only for reference.

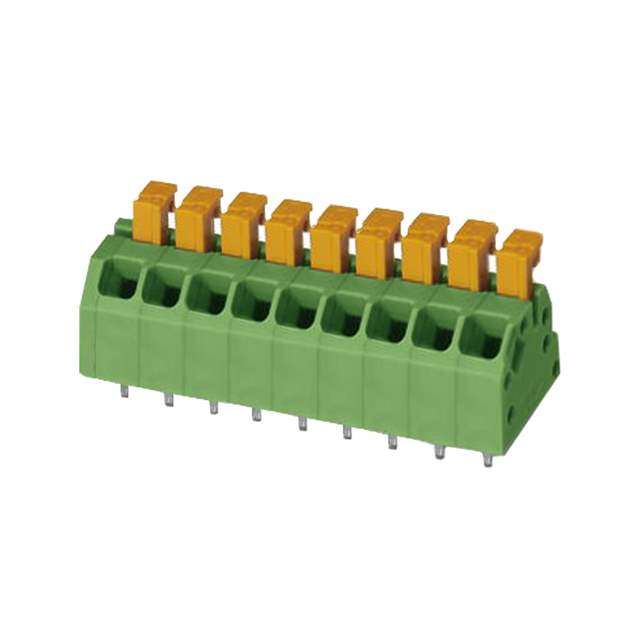

1864354

Part No 1864354
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK 9POS 45DEG 3.5MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Phoenix Contact
Series COMBICON SPTAF LL
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 9
Pitch 0.138" (3.50mm)
Mating Orientation 45° (135°) Angle with Board
Current 8 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Standard Package 50 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1147400-1864354
Ultra Librarian 3D Model Ultra Librarian 1864354 CAD Model

Description

The COMBICON SPTAF LL series terminal block is a versatile and reliable solution for wire-to-board connections in electronic applications.

  • Pitch: 0.138" (3.50mm)
  • Positions per Level: 9
  • Levels: 1
  • Housing Material: Polyamide (PA) Nylon
  • Voltage Rating: 300V
  • Current Rating: 8A
  • Interlocking Feature: Yes
  • Wire Termination: Screwless Leg Spring and Push-In Spring
  • Wire Gauge: 16 to 24 AWG
  • Mounting Type: Through-Hole
