Same model may have multiple batches, images only for reference.

1873171

Name: 1873171
Brand: Phoenix Contact
SKU: 1332925
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	1873171
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

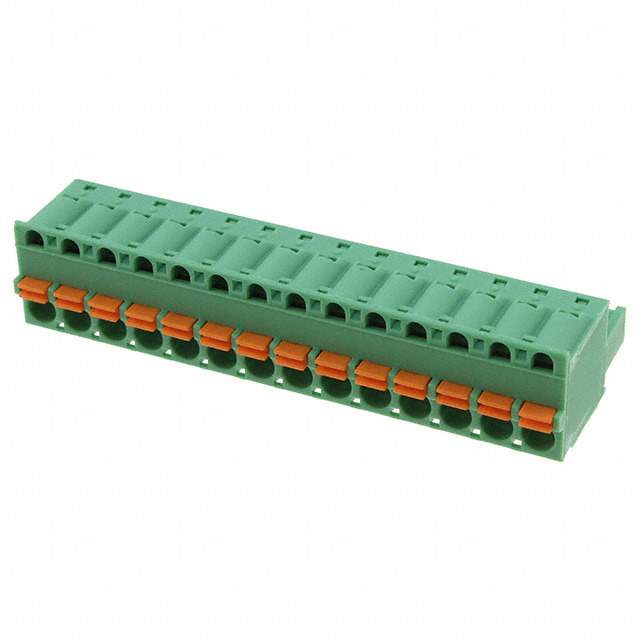

Description	TERM BLOCK PLUG 14POS STR 5.08MM / 14 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	14
Positions Per Level	14
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-26 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Wire Strip Length	10mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	FKC 2,5/14-ST-5,08,277-1353,277-1353-NDR,FKC2,5/14-ST-5,08
Standard Package	50
Win Source Part Number	1332925-1873171
Ultra Librarian 3D Model	Ultra Librarian 1873171 CAD Model

Alternative Products

Description

This green terminal block has a plug female socket type and has 14 positions per level.

Pitch: 0.200 inches (5.08mm)
Wire Gauges: 12-26 AWG or 0.2-2.5mm2
Termination Style: Screwless leg spring push-in spring termination style
Current: Up to 12A
Voltage: Up to 630V
Mounting: Free-hanging (in-line)
Insulation Height: 0.591 inches (15.00mm)
Wire Strip Length: 10mm
Material: Polyamide (PA) and nylon
ECCN: EAR99
HTSUS Code: 8536.69.8000
Compliance: ROHS compliant
Part Number: FKC 2,5/14-ST-5,08,277-1353,277-1353-NDR,FKC2,5/14-ST-5,08
