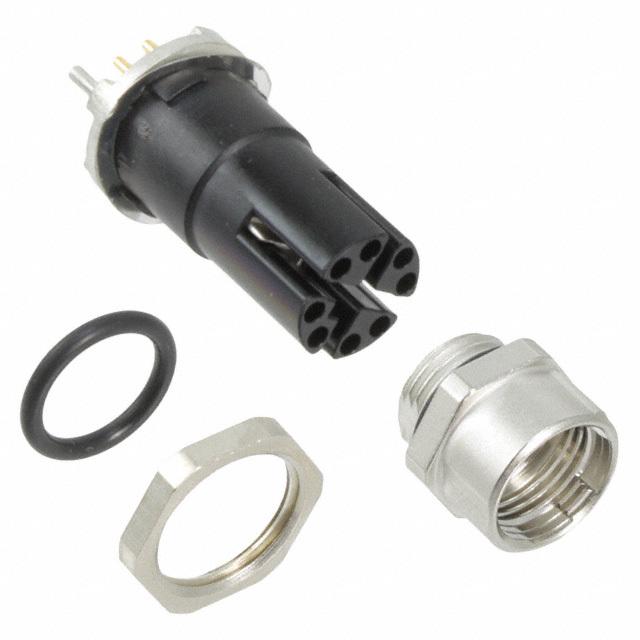

NL1801 Phoenix Contact
Same model may have multiple batches, images only for reference.

NL1801

Part No NL1801
Manufacturer Phoenix Contact
Catalog Circular Connectors
Description SOCKET 8POS STR M12
Datasheet
NL1801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Phoenix Contact
Packaging Bulk
Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 8
Shell Size - Insert M12-8
Mounting Panel Mount, Bulkhead; Through Hole
Termination Solder
Fastening Type Push-Twist
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Material, Finish Zinc Die Cast, Nickel Plated
Contact Finish Gold
Voltage Rating 48V
Current Rating 0.5A
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 257183-NL1801
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NL1801 CAD Model

Description

The M12-8 series Receptacle Connector from Phoenix Contact is a reliable and high-quality solution for electrical connections.

  • Manufacturer: Phoenix Contact
  • Series: M12-8
  • Positions: 8
  • Mounting Type: Panel Mount and Through-Hole
  • Shell Size: M12-8
  • Material: Zinc Die-Cast
  • Plating: Nickel
  • Voltage Rating: 48V
  • Current Rating: 0.5A
  • Ingress Protection: IP67
  • Contact Finish: Gold
  • Termination: Solder
