Same model may have multiple batches, images only for reference.

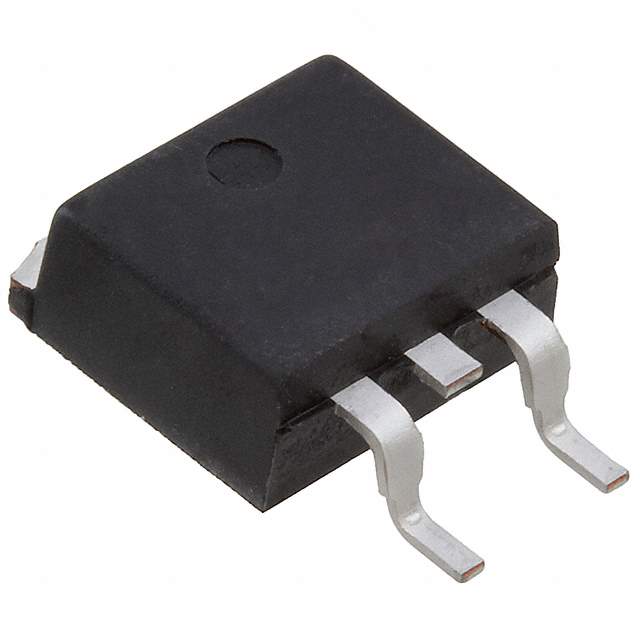

LQA30B200C Real Image
Same model may have multiple batches, images only for reference.

LQA30B200C

Part No LQA30B200C
Manufacturer Power Integrations
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 15A TO263AB / Diode Switching 200V 30A 3-Pin(2+Tab) TO-263AB T/R
Datasheet
LQA30B200C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Power Integrations
Series Qspeed
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) @ If 1.2V @ 15A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 16.5ns
Current - Reverse Leakage @ Vr 500μA @ 200V
Operating Temperature - Junction -55°C ~ 150°C
Mounting SMD
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Manufacturer Package TO-263AB
Win Source Part Number 780032-LQA30B200C
Popularity Medium
Supply and Demand Status Limited
Family Name LQA30B200C
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQA30B200C CAD Model

Description

The Power Integrations 780032-LQA30B200C is a fast recovery diode from Power Integrations.

  • Current Average Rectified (Io): 15A
  • Voltage Forward (Vf): 1.2V @ 15A
  • Mounting: Surface Mount
  • Family: LQA30B200C
  • Reverse Recovery Time (trr): 16.5ns
  • Win Source Part Number: 780032-LQA30B200C
  • EOL Date: 2027
