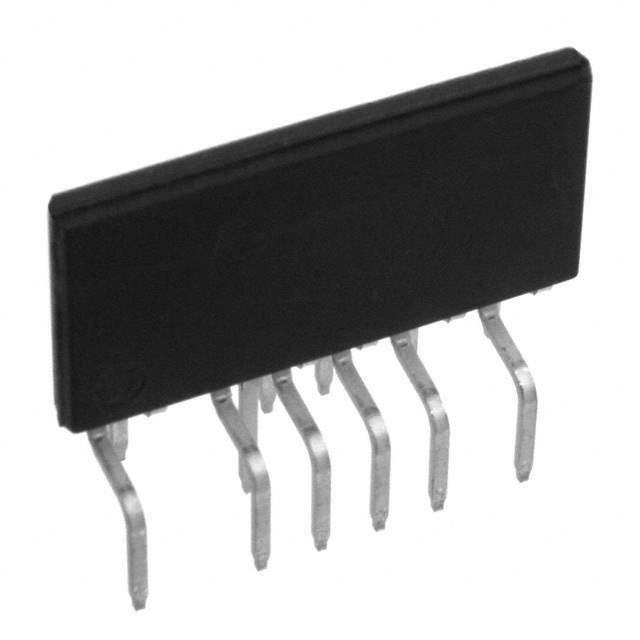

TFS758HG Real Image
Same model may have multiple batches, images only for reference.

TFS758HG

Part No TFS758HG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC PWR SUPPLY CTLR 236W ESIP-16
Datasheet
TFS758HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 530V, 725V
Topology Flyback, Forward
Voltage - Start Up 12.1V
Supply Voltage - Operating 11.1 V to 13.4 V
Duty Cycle 70%
Frequency - Switching 66kHz
Power (Watts) 236W
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 16-eSIPB
Mounting Through Hole
Win Source Part Number 1106860-TFS758HG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TFS758HG CAD Model

Description

The Power Integrations TFS758HG is an isolated flyback and forward topology integrated circuit.

  • Power Rating: 236W
  • Voltage Breakdown: 530V, 725V
  • Duty Cycle: 70%
  • Frequency Switching: 66kHz
  • Fault Protection: current limiting, over temperature, over voltage, and short circuit
  • Mounting Type: through hole
  • Output Isolation: Yes
  • Internal Switch: Yes
  • Voltage Start-Up: 12.1V
  • Control: EN
  • Popularity: Medium (61 pct)
  • Supply and Demand: limited
  • Operating Temperature: -40°C to 150°C (TJ)
  • Package: 16-eSIPB
