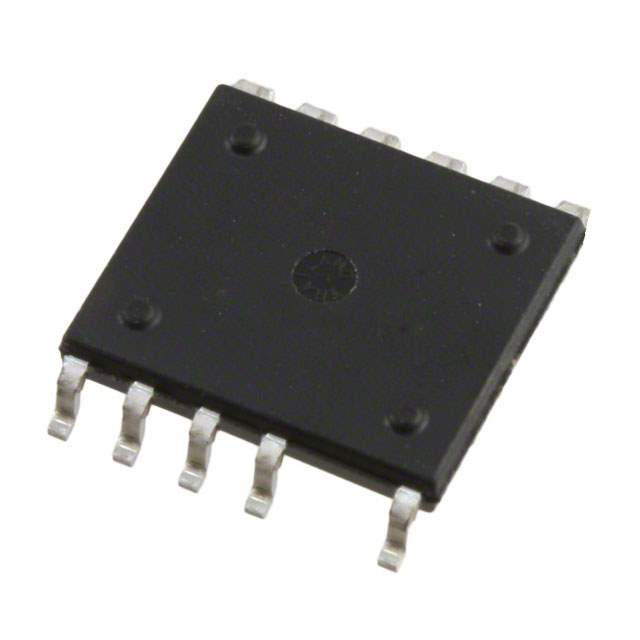

TNY290KG

Name: TNY290KG
Brand: Power Integrations
SKU: 797753
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TNY290KG
Manufacturer	Power Integrations
Catalog	PMIC - AC DC Converters, Offline Switchers
Description	IC OFF-LINE SWITCH PWM 12SOP / AC to DC Switching Converter Off-Line Switcher 124kHz to 140kHz 11-Pin SOP-B EP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Power Integrations
Series	TinySwitch-4
Packaging	Tube
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	725V
Topology	Flyback
Duty Cycle	67%
Frequency - Switching	124kHz ~ 140kHz
Power (Watts)	28W
Fault Protection	Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features	EN
Operating Temperature Range	-40°C ~ 150°C (TJ)
Package	12-BESOP (0.350", 8.89mm Width) 11 Leads, Exposed Pad
Manufacturer Package	12-ESOP
Mounting	SMD
Win Source Part Number	797753-TNY290KG
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TNY290
Introduction Date	September 25, 2012
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian TNY290KG CAD Model

Alternative Products

Description

The TNY290KG is a Power Integrations TinySwitch-4 series flyback topology integrated circuit (IC) with an internal switch and isolated output.

Breakdown Voltage: 725V
Duty Cycle: 67%
Switching Frequency: 124kHz to 140kHz
Fault Protection: current limiting, open loop, over temperature, over voltage, and short circuit protection
Power Rating: 28W
Operating Temperature Range: -40°C to 150°C
Package: 12-BESOP
Mounting: surface mounting
