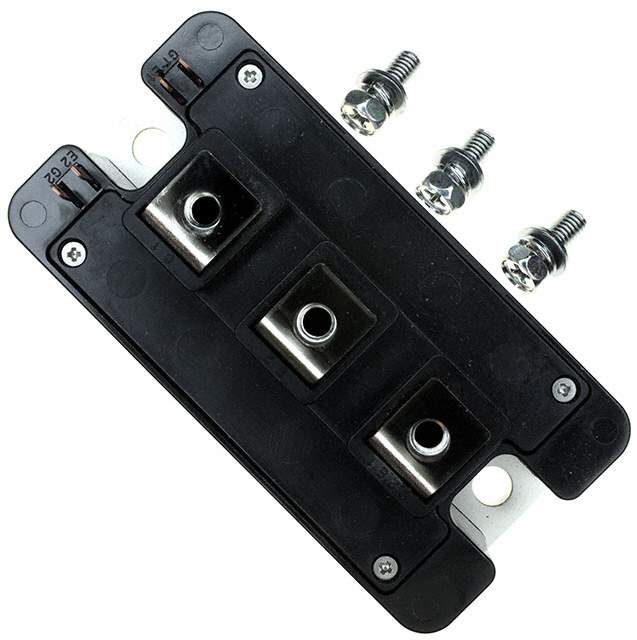

CM300DY-12NF Real Image
Same model may have multiple batches, images only for reference.

CM300DY-12NF

Part No CM300DY-12NF
Manufacturer Powerex Inc.
Catalog HOT - SALES and EOL Components
Description IGBT MOD DUAL 600V 300A NF SER / Trans IGBT Module N-CH 600V 300A 780000mW 7-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Powerex Inc.
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 300A
Maximum Power 780W
Vce(on) (Maximum) at Vge, Ic 2.2V at 15V, 300A
Current - Collector Cutoff (Maximum) 1mA
Input Capacitance (Cies) at Vce 45nF at 10V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package Module
Supplier Device Package Module
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 94539-CM300DY-12NF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name CM300DY-12NF
Introduction Date July 05, 2000
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CM300DY-12NF CAD Model

Description

Product Description for CM300DY-12NF

The CM300DY-12NF is an advanced IGBT module designed to deliver exceptional performance with minimal power loss. Its architecture optimizes functionality for high-demand electrical applications.

Applications

  • AC and DC motor control
  • Welding equipment
  • Robotic and automation systems
  • Solar inverters
  • HVAC systems

Features and Benefits

  • 300A high current capability
  • Designed for 1200V operation
  • Efficient energy handling
  • Rugged construction for enhanced reliability
  • Facilitates high-speed operations

The CM300DY-12NF ensures enhanced power management and stability, fostering significant improvements in existing power systems.
