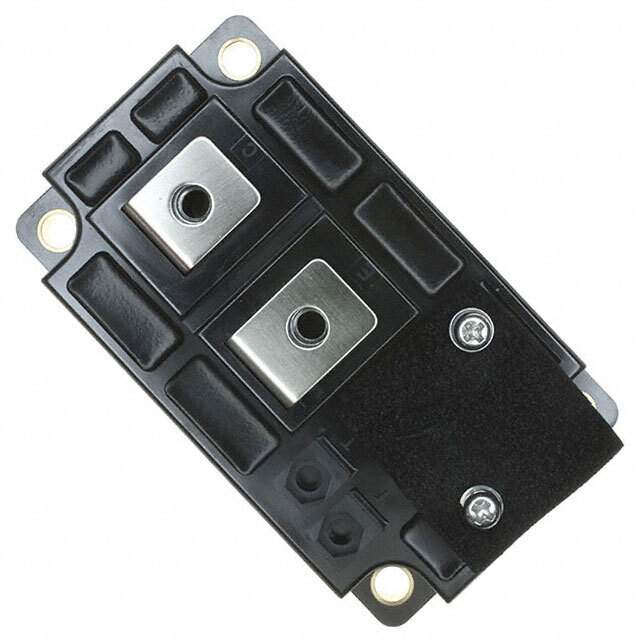

CM600HA-24A Real Image
Same model may have multiple batches, images only for reference.

CM600HA-24A

Part No CM600HA-24A
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 600A 3670W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Series IGBTMOD™
Package Bulk
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 600 A
Power - Max 3670 W
Vce(on) (Max) @ Vge, Ic 3V @ 15V, 600A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 105 nF @ 10 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package Module
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1352313-CM600HA-24A
Ultra Librarian 3D Model Ultra Librarian CM600HA-24A CAD Model

Description

The Powerex Inc. CM600HA-24A is an IGBT module that features a single configuration and a standard input.

  • Voltage Breakdown: 1200V
  • Maximum Collector Current: 600A
  • Vce(on): 3V @ 15V, 600A
  • Input Capacitance (Cies): 105nF @ 10V
  • Power Output: 3670W
  • Mounting Type: Chassis Mount
