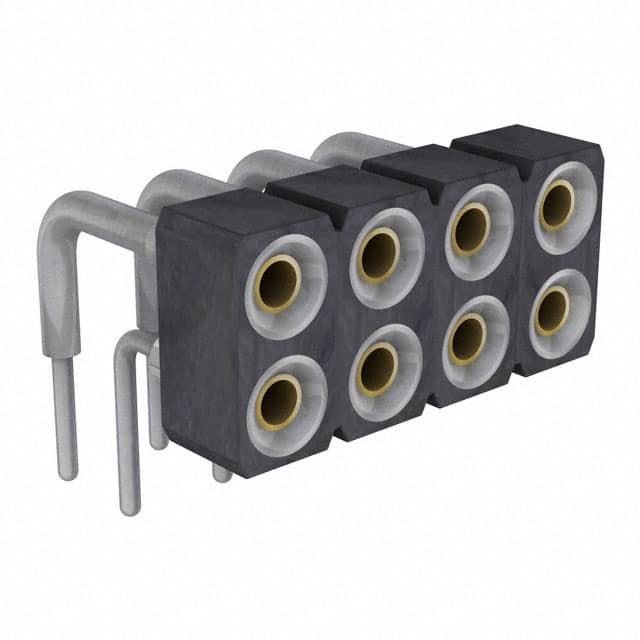

Same model may have multiple batches, images only for reference.

499-87-208-10-003101

Name: 499-87-208-10-003101
Brand: Preci-Dip
SKU: 1163030
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	499-87-208-10-003101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN SOCKET 8P 0.1 GOLD PCB R/A / 8 Position Socket Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Datasheet	499-87-208-10-003101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Preci-Dip
Series	499
Package	Bulk
Connector Type	Socket
Contact Type	Female Socket
Style	Board to Board
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	499-87
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	4998720810003100,1212-1160
Standard Package	400
Win Source Part Number	1163030-499-87-208-10-003101
Ultra Librarian 3D Model	Ultra Librarian 499-87-208-10-003101 CAD Model

Alternative Products

Description

The Preci-Dip 499-87-208-10-003101 is a high-quality connector that is designed to provide excellent performance and reliability.

Number of Positions: 8
Style: board to board
Contact Finish: gold
Contact Finish Thickness: flash
Insulation Material: polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled
Mounting: through hole, right angle
Row Spacing: 0.100" (2.54mm)
Temperature Range: -55°C ~ 125°C
ECCN: EAR99 compliant
