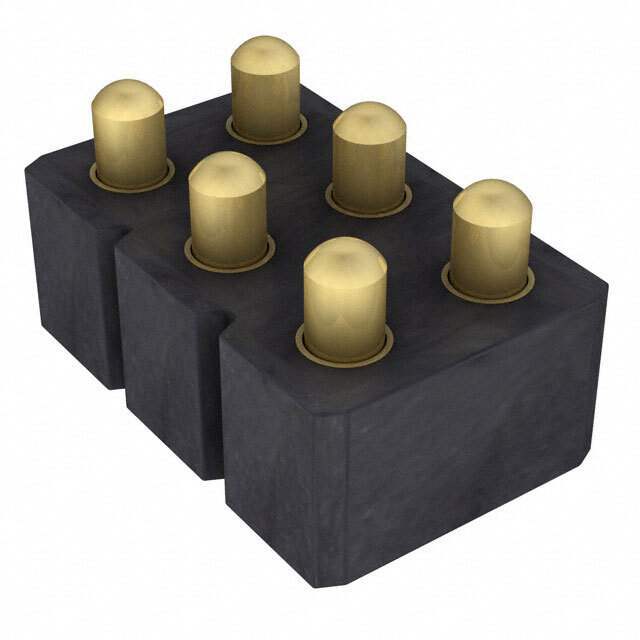

Same model may have multiple batches, images only for reference.

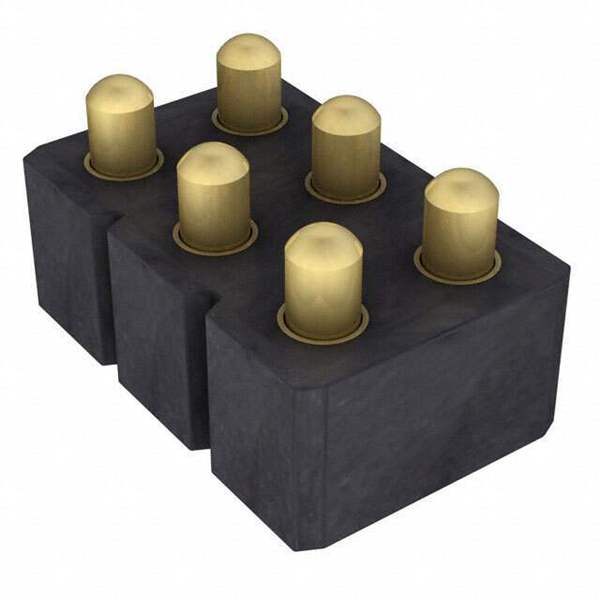

813-SS-006-30-003101 Preci-Dip
Same model may have multiple batches, images only for reference.

813-SS-006-30-003101

Part No 813-SS-006-30-003101
Manufacturer Preci-Dip
Catalog Rectangular Connectors
Description CONN SPRING PISTON 6POS SMD
Datasheet
813-SS-006-30-003101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305281-813-SS-006-30-003101
Manufacturer Preci-Dip
Category Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging  Bulk
Part Status Active
Connector Type Piston
Number of Contacts 6
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Surface Mount
Material Brass
Ultra Librarian 3D Model Ultra Librarian 813-SS-006-30-003101 CAD Model

Description

Basic modular connectors with spring-loaded contacts (SLC), surface mount.Contacts with hollow piston design for low profile.
