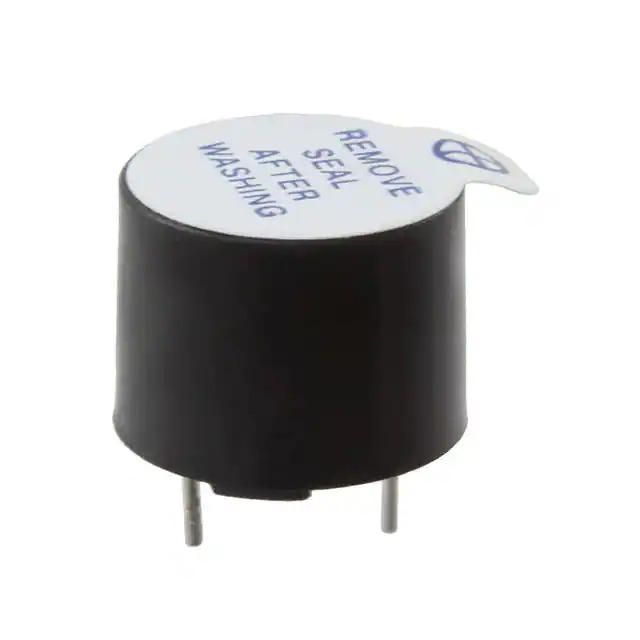

AI-1223-TWT-5V-5-R PUI Audio, Inc.
Same model may have multiple batches, images only for reference.

AI-1223-TWT-5V-5-R

Part No AI-1223-TWT-5V-5-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 5V 12MM TH / Buzzers Indicator, Internally Driven Electromechanical/Magnetic 5 V 30mA 2.3kHz 85dB @ 5V, 10cm Through Hole PC Pins
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series AI
Package Tray
Product Status Active
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 5 V
Voltage Range 4 ~ 7V
Frequency 2.3kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Duration -
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Current - Supply 30mA
Port Location Top
Temperature Range - Operating -20°C ~ 70°C
Approval Agency -
Ratings Washable
Mounting Type Through Hole
Termination PC Pins
Size / Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.382" (9.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1353275-AI-1223-TWT-5V-5-R
Ultra Librarian 3D Model Ultra Librarian AI-1223-TWT-5V-5-R CAD Model

Description

The AI-1223-TWT-5V-5-R is an audio alarm buzzer from PUI Audio, Inc.'s AI series.

  • Voltage Range: 4V to 7V
  • Sound Pressure Level (SPL) @ 5V and 10cm: 85dB
  • Frequency: 2.3kHz
  • Temperature Range: -20°C to 70°C
  • Washable: Yes
  • Size: 0.472" diameter, 0.382" height
  • Mounting Type: Through-Hole
  • Termination Style: PC Pins
