Same model may have multiple batches, images only for reference.

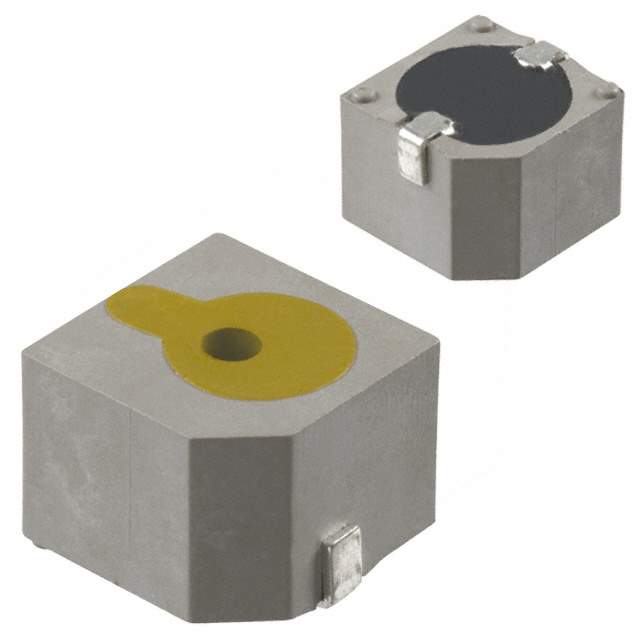

ASI401Q Real Image
Same model may have multiple batches, images only for reference.

ASI401Q

Part No ASI401Q
Manufacturer Mallory Sonalert Products Inc.
Catalog Audio Accessories
Description BUZZER MAGN 12V 12.6X12.6MM SMD / Buzzers Indicator, Internally Driven Magnetic 12 V 50mA 2.4kHz 90dB @ 12V, 10cm Surface Mount Solder Pads
Datasheet
ASI401Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr Mallory Sonalert Products Inc.
Series ASI
Package Tube
Driver Circuitry Indicator, Internally Driven
Input Type DC
Voltage - Rated 12 V
Voltage Range 9 ~ 15V
Frequency 2.4kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 90dB @ 12V, 10cm
Current - Supply 50mA
Port Location Top
Temperature Range - Operating -20°C ~ 70°C
Ratings Washable
Mounting SMD (SMT)
Termination Solder Pads
Dimension 0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max) 0.402" (10.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Names 458-1050,Q3740236
Standard Package 35
Win Source Part Number 1227211-ASI401Q
Ultra Librarian 3D Model Ultra Librarian ASI401Q CAD Model

Description

The ASI series buzzer is designed for use in alarms, buzzers, and sirens. The device operates on a DC input and has a voltage rating of 12V. The device has a sound pressure level of 90dB @ 12V and 10cm.

  • Frequency: 2.4kHz
  • Current Supply: 50mA
  • Mounting Type: SMD (SMT)
  • Temperature Range: -20°C to 70°C
  • Suitable for Applications: Audio Products>Alarms, Buzzers, and Sirens
