AS04016MR-R PUI Audio, Inc. – Price, Stock & Datasheet

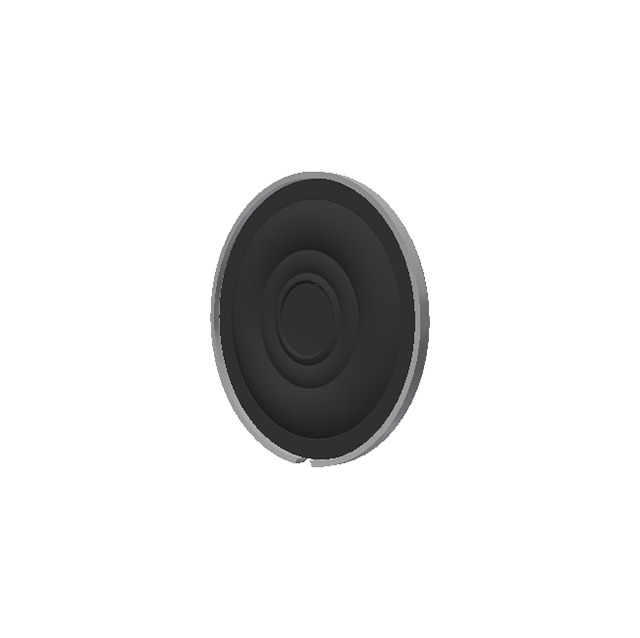

Same model may have multiple batches, images only for reference.

AS04016MR-R

Part No AS04016MR-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 16OHM 1W TOP PORT 78DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Technology Magnetic
Type General Purpose
Frequency Range 600 Hz ~ 5.2 kHz
Frequency - Self Resonant 600Hz
Impedance 16 Ohms
Efficiency - dBA 78.00
Efficiency - Testing 100mW/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 2 W
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Termination Solder Eyelet(s)
Size / Dimension 1.575" Dia (40.00mm)
Height - Seated (Max) 0.417\
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1547114-AS04016MR-R
Ultra Librarian 3D Model Ultra Librarian AS04016MR-R CAD Model
