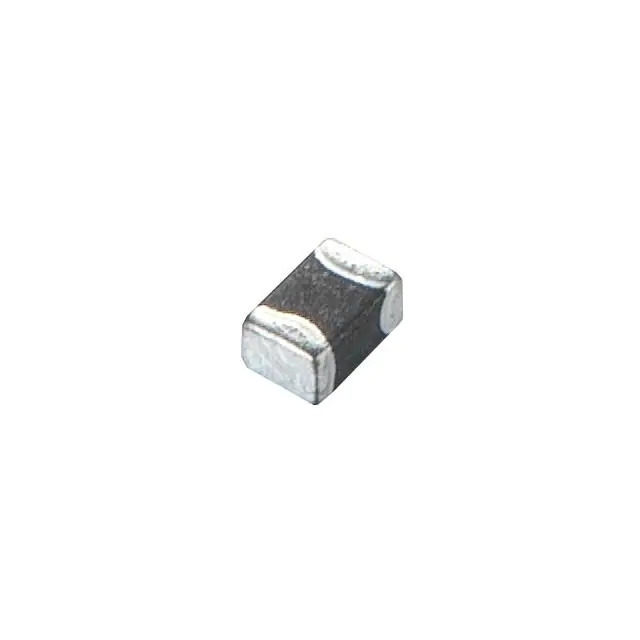

Same model may have multiple batches, images only for reference.

BBPY00160808121Y00

Name: BBPY00160808121Y00
Brand: Pulse
SKU: 1369077
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BBPY00160808121Y00
Manufacturer	Pulse
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 120 OHM 0603 1LN
Datasheet	BBPY00160808121Y00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Pulse Electronics
Series	BBPY
Package	Tape & Reel
Product Status	Active
Filter Type	-
Number of Lines	1
Impedance @ Frequency	120 Ohms @ 100 MHz
Current Rating (Max)	2.5A
DC Resistance (DCR) (Max)	80mOhm
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0603 (1608 Metric)
Mounting Type	Surface Mount
Height (Max)	0.037" (0.95mm)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Features	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	1369077-BBPY00160808121Y00
Ultra Librarian 3D Model	Ultra Librarian BBPY00160808121Y00 CAD Model

Alternative Products

Description

The BBPY00160808121Y00 is a surface mount ferrite bead from Pulse Electronics.

Series: BBPY
Size / Dimension: 0.063" L x 0.031" W (1.60 mm x 0.80 mm)
Height (Max): 0.037" (0.95 mm)
Impedance @ Frequency: 120 Ohms @ 100 MHz
Current Rating (Max): 2.5 A
Operating Temperature: -55°C ~ 125°C
Status: Active
Packaging: Tape & Reel (TR)
Application: Applications requiring noise suppression.
