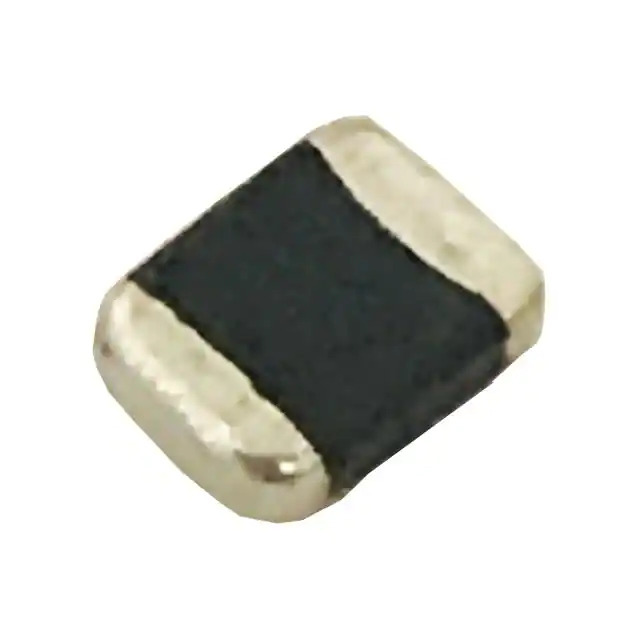

BDHE00201610R47MQ1 Pulse
Same model may have multiple batches, images only for reference.

BDHE00201610R47MQ1

Part No BDHE00201610R47MQ1
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 470NH 4.2A 42 MOHM SMD
Datasheet
BDHE00201610R47MQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BDHE
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 4.8A
Shielding Unshielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370468-BDHE00201610R47MQ1
Ultra Librarian 3D Model Ultra Librarian BDHE00201610R47MQ1 CAD Model

Description

The 1370468-BDHE00201610R47MQ1 is a molded fixed inductor from Pulse Electronics.

  • Series: BDHE
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.039" (1.00mm)
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Current Rating: 4.2 A
  • Saturation Current: 4.8A
  • Shielding: Unshielded
  • DC Resistance: 42mOhm
