Same model may have multiple batches, images only for reference.

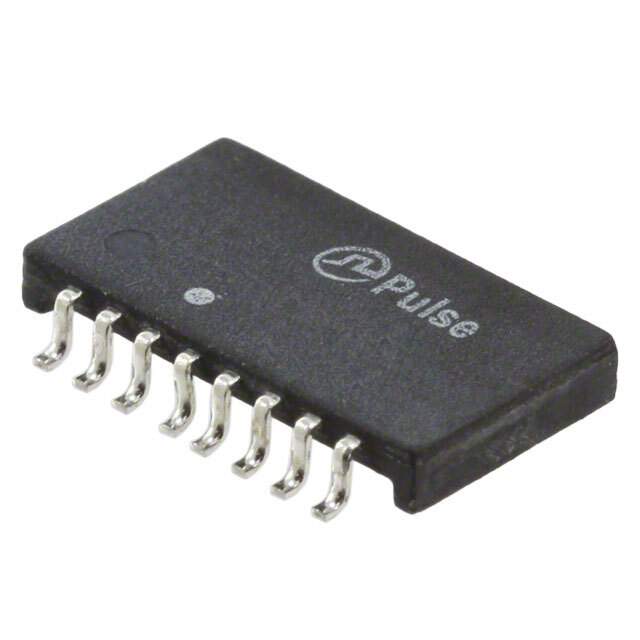

H0019NL Real Image
Same model may have multiple batches, images only for reference.

H0019NL

Part No H0019NL
Manufacturer Pulse
Catalog Pulse Transformers
Description RoHS peak reflow temperature rating 260C | MODULE PC CARD SNGL LAN 16PCMCIA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN
Mounting Style SMD
Parts Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Maximum) 0.078" (1.98mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.01 oz (0.28g)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1178092-H0019NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H0019NL CAD Model

Description

The Pulse Electronics Network transformer 1178092-H0019NL is a medium popularity component in the transformer category.

  • Mounting Style: SMD
  • Type: LAN Transformer
  • Temperature Range: 0°C to 70°C
  • Manufacturer Pack Quantity: 40
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.500" L x 0.280" W (12.70mm x 7.11mm)
