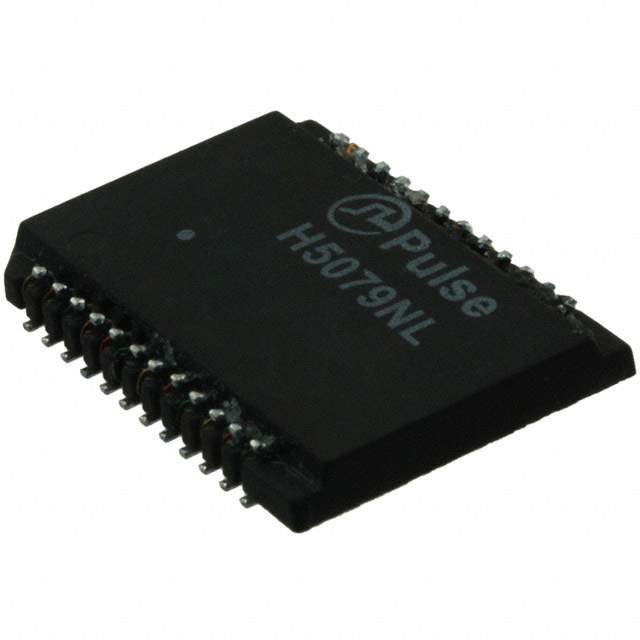

H5079NLT Real Image
Same model may have multiple batches, images only for reference.

H5079NLT

Part No H5079NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE MINI-MAG 1PORT 1000BASE-T / Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet
H5079NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 0.785" L x 0.551" W (19.94mm x 14.00mm)
Height - Seated (Max) 0.100" (2.54mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.04 oz (1.14 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-3786-6,553-3786-1,553-3786-2,H5079NLT-ND
Standard Package 700
Win Source Part Number 991016-H5079NLT
Ultra Librarian 3D Model Ultra Librarian H5079NLT CAD Model

Description

The Pulse Electronics Network 991016-H5079NLT is an encapsulated SMD pulse transformer that is designed for high-performance applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: Encapsulated SMD pulse transformer
  • Operating Temperature: 0°C to 70°C
  • Packaging: Tape and reel
  • Standard Package: 700
  • Weight: 0.04 oz (1.14 g)
  • Height: 0.100" (2.54mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Production Lead Time: Not specified
