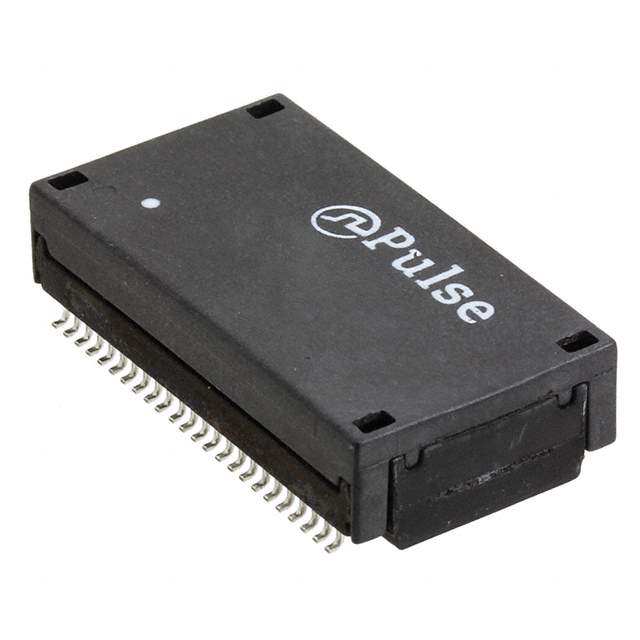

H6080FNLT Real Image
Same model may have multiple batches, images only for reference.

H6080FNLT

Part No H6080FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H6080FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel (TR)
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 1.095" L x 0.590" W (27.81mm x 14.99mm)
Height - Seated (Max) 0.285" (7.24mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 250
Win Source Part Number 981685-H6080FNLT
Ultra Librarian 3D Model Ultra Librarian H6080FNLT CAD Model

Description

The 981685-H6080FNLT is a pulse transformer from Pulse Electronics Network that is designed for use in LAN 10/100/1000 Base-T applications.

  • Inductance: 350 µH
  • Package: Tape and reel
  • Applications: Power supplies, consumer electronics, and automotive electronics
