Same model may have multiple batches, images only for reference.

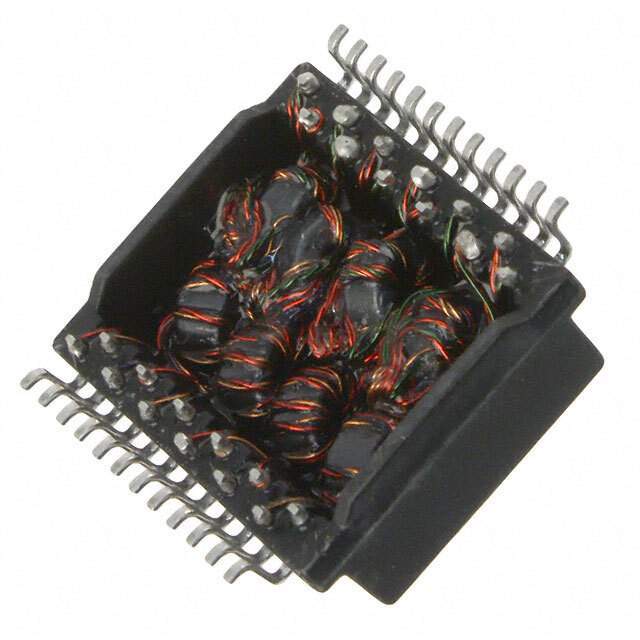

H7008NL Real Image
Same model may have multiple batches, images only for reference.

H7008NL

Part No H7008NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE 10GBASE-T / Isolation and Data Interface (Encapsulated) Pulse Transformer Surface Mount
Datasheet
H7008NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Pulse Electronics
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Surface Mount
Size / Dimension 0.539" L x 0.480" W (13.70mm x 12.20mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating 0°C ~ 70°C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number H7008NL-ND,-H7008NL,553-1613-5
Standard Package 35
Win Source Part Number 1330492-H7008NL
Ultra Librarian 3D Model Ultra Librarian H7008NL CAD Model

Description

The Pulse Electronics 1330492-H7008NL is a transformer that is encapsulated and is used for isolation and data interface.

  • Type: Encapsulated, Isolation and Data Interface
  • Size: 0.539" L x 0.480" W (13.70mm x 12.20mm)
  • Standard Package: 35
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C ~ 70°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
