Same model may have multiple batches, images only for reference.

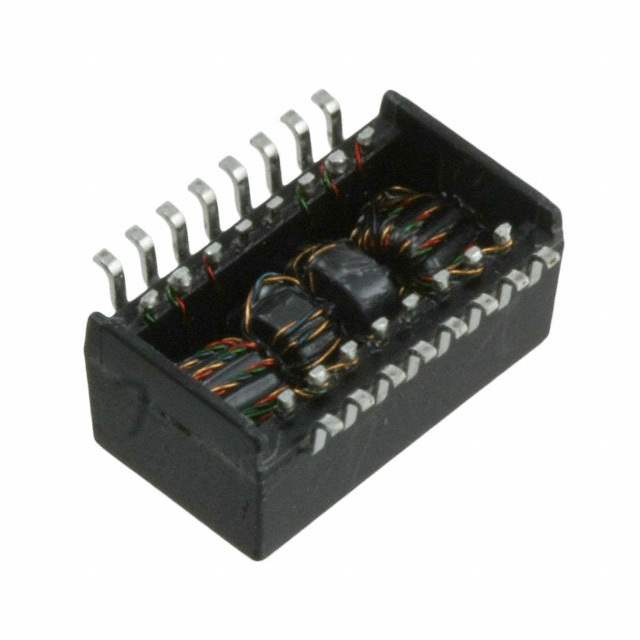

HX1260NLT Real Image
Same model may have multiple batches, images only for reference.

HX1260NLT

Part No HX1260NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MODULE 1PORT 1:1 10/100
Datasheet
HX1260NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.1 oz (2.85g)
Win Source Part Number 127949-HX1260NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX1260NLT CAD Model

Description

The Pulse Electronics Corporation HX1260NLT is an isolation and data interface transformer that is encapsulated. It is packaged in a reel - TR and has a maximum seated height of 0.245 inches. This transformer has a weight of 0.1 ounces and is mounted using SMD (SMT). It is categorized under transformers and is currently active in the market. This product is commonly used and has a high popularity.
